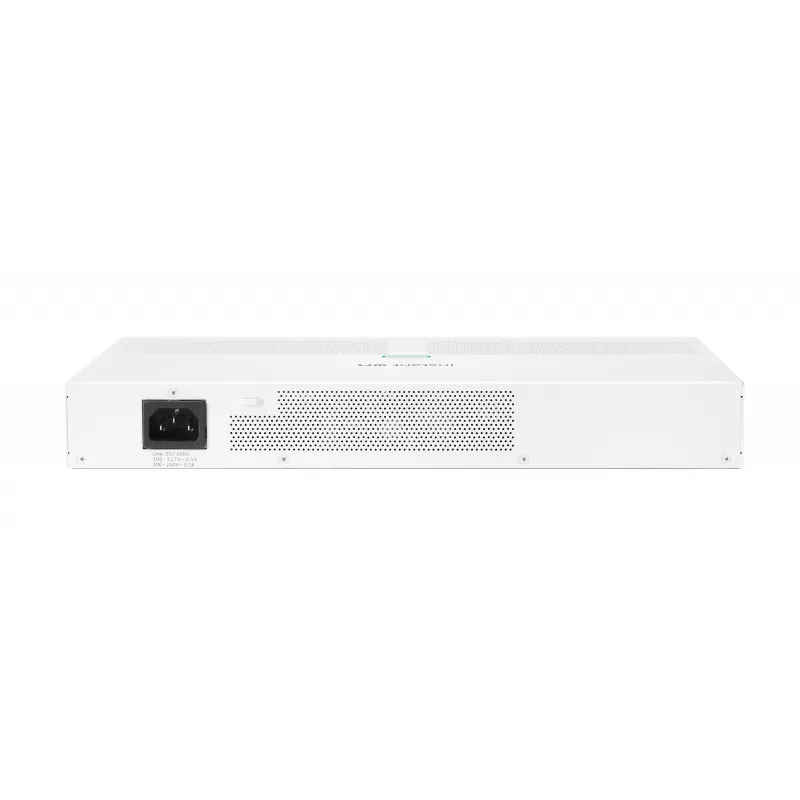

HPE Networking Instant On Switch 24p Gigabit 1430

Small offices and retail shops often need a straightforward way to connect a growing number of computers, printers, and access points without dealing with complex configuration. The HPE Networking Instant On Switch 24p Gigabit 1430 answers that need with 24 auto-sensing Gigabit Ethernet ports in a fanless, rack-mountable 1U chassis. It delivers reliable, wire-speed performance for everyday business traffic, while its plug-and-play operation means you can have the network up and running in minutes.

Key specifications

• 24 x 10/100/1000BASE-T Gigabit Ethernet ports
• Unmanaged switch with no configuration required
• 48 Gbps switching capacity and 35.7 Mpps forwarding rate
• Fanless design for silent operation
• IEEE 802.3az Energy Efficient Ethernet support
• Desktop or rack-mountable (1U) with included kit
• Jumbo frame support up to 9216 bytes
• 8K MAC address table

Why choose it

This switch eliminates the complexity of managed switches while still providing the performance and reliability expected from HPE. Its fanless cooling ensures zero noise, making it ideal for open office areas, meeting rooms, or any environment where silence matters. The energy-efficient design helps lower power consumption, and the sturdy metal housing is built for long-term use. With 24 Gigabit ports, you can connect a full workgroup without bandwidth bottlenecks.

Ideal use cases

• Small to medium business networks needing simple, high-speed connectivity
• Retail stores, clinics, or branch offices with multiple wired devices
• Connecting IP cameras, access points, and VoIP phones
• Expanding an existing network without adding management overhead

Good to know

The switch operates on 100–240V AC and consumes a maximum of 14.5W, so it runs cool and efficient. It supports a wide operating temperature range from 0°C to 40°C and humidity up to 95% non-condensing. LED indicators on each port show link and activity status at a glance. The package includes rack-mount ears for a neat 1U installation in a standard 19-inch rack.
