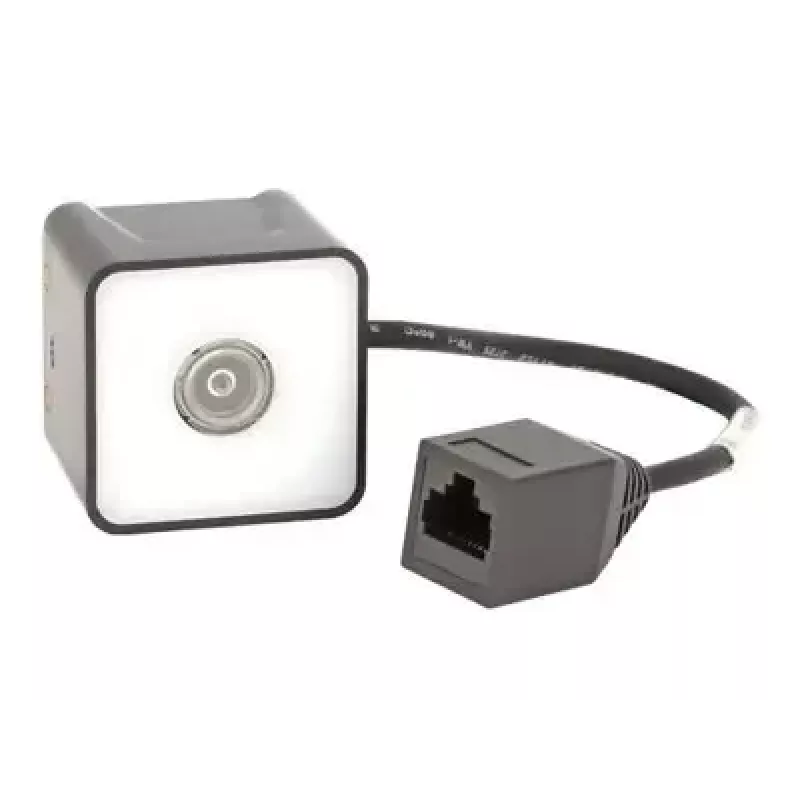

Honeywell HF520 2D USB ενσωματωμένος σαρωτής barcode, μαύρο HF520-R1-1USB

Fixed-mount barcode scanning often struggles with limited space, demanding high-speed reading, and the need for reliable 2D code capture. The Honeywell HF520 addresses these challenges with a compact embedded scanner that delivers fast, accurate performance for kiosks, access control, and automated equipment.

Who is it for

System integrators and OEMs who need a durable, fixed-position scanner for self-service kiosks, ticket validation, or assembly line tracking. It suits applications requiring USB connectivity and 2D barcode reading in a small form factor.

Main features

• 2D area imager reads all common 1D and 2D barcodes, including QR Code and Data Matrix
• White LED illumination with red LED dot aiming for easy target alignment
• Embedded design with IP40 rating for protection against solid objects
• USB interface for simple integration with host systems
• Black housing for discreet installation

Specifications

• Scanning technology: 2D Area Imager
• Sensor type: CMOS
• Field of view: Horizontal 48°, Vertical 30°
• Motion tolerance: 2.5 m/s (100 in./s) for 13 mil UPC
• Interface: USB
• Input voltage: 5 VDC
• Power consumption (operating): 2.5 W
• Power consumption (standby): 0.5 W
• Operating temperature: -10°C to 50°C (14°F to 122°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Operating humidity: 5% to 95% relative humidity, non-condensing
• International Protection code: IP40
• Product colour: Black

Tips

Interface cable and power supply are sold separately. Ensure your mounting surface is stable and the scanner is positioned within the specified field of view for optimal reading performance.
