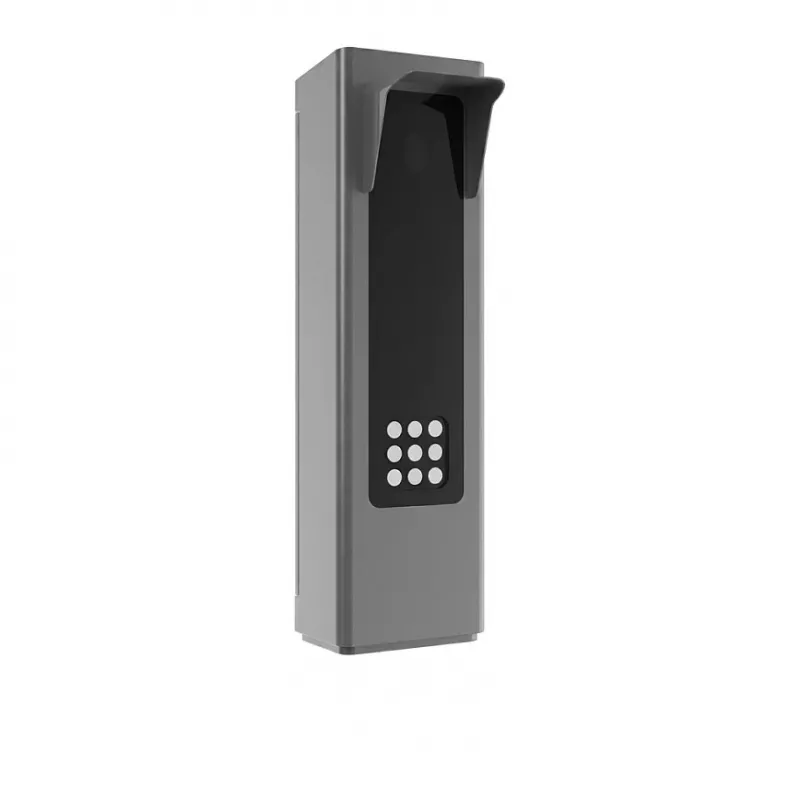

Hikvision DS-TMC403-EL 4MP GMOS Access ANPR Κάμερα, IP54, Νυχτερινή όραση

The Hikvision DS-TMC403-EL is a high-performance 4MP GMOS Access ANPR camera designed for automatic number plate recognition in access control applications. With IP54 weatherproof rating and built-in night vision, it delivers reliable 24/7 surveillance in outdoor environments.

Advantages

This camera offers exceptional image quality with 4MP resolution and GMOS sensor technology, ensuring clear capture of license plates even in challenging lighting conditions. The IP54 rating provides protection against dust and water splashes, making it suitable for outdoor use. Integrated night vision allows continuous operation in complete darkness.

Suitable for

• Access control systems at parking lots, gates, and entrances
• Automatic number plate recognition (ANPR) for security and monitoring
• Outdoor surveillance requiring weather-resistant equipment
• Integration with Hikvision access control and security systems

Key specifications

• Resolution: 4 MP (2688×1520)
• Sensor: 1/2.7" Progressive Scan CMOS (GMOS)
• Minimum Illumination: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
• IR Range: Up to 30m
• Lens: 2.8mm fixed
• Day/Night: IR cut filter
• Video Compression: H.265+/H.265/H.264+/H.264
• Frame Rate: 25fps (2688×1520)
• Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance
• Network: 1× RJ45 10M/100M self-adaptive Ethernet
• Protocols: TCP/IP, UDP, HTTP, DHCP, DNS, NTP, RTSP, etc.
• Storage: Micro SD card slot (up to 256GB)
• Alarm: 1 input, 1 output
• Audio: 1 input, 1 output
• Power: 12V DC ±25%, PoE (802.3af)
• Power Consumption: Max. 7W
• Operating Temperature: -30°C to +60°C
• Ingress Protection: IP54
• Dimensions: 72×63×149mm
• Weight: Approx. 500g

Recommendations

For optimal ANPR performance, mount the camera at a height of 2-3 meters with a clear view of the license plate area. Ensure proper lighting and avoid direct sunlight into the lens. Use a PoE switch for simplified installation.
