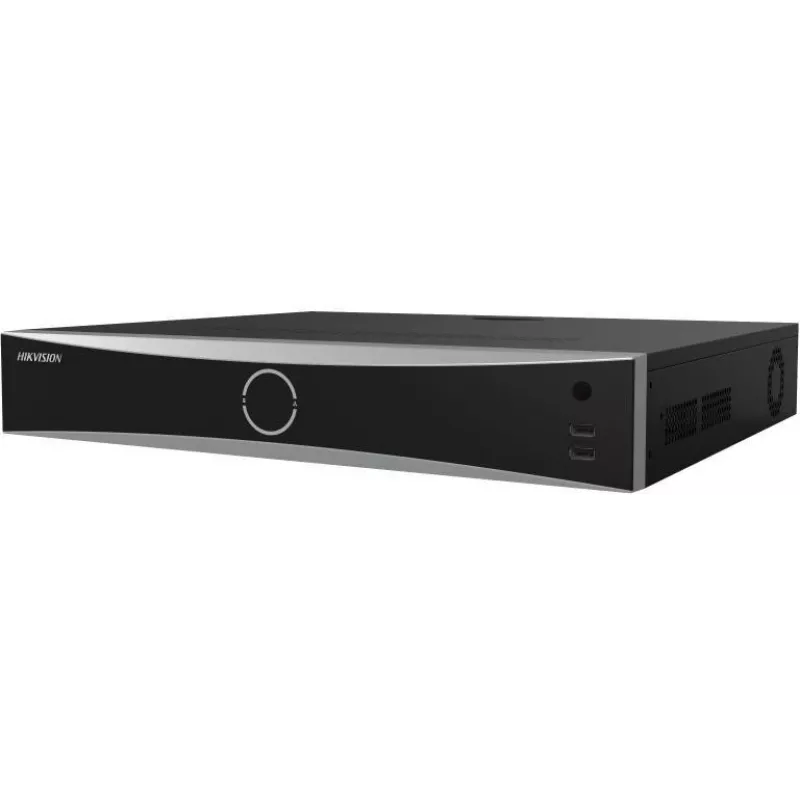

Hikvision DS-7716NXI-K4/16P(D)/PL 16-Κανάλι 16-PoE AcuSense IP NVR

The Hikvision DS-7716NXI-K4/16P(D)/PL is a high-performance 16-channel network video recorder (NVR) with 16 integrated PoE ports, designed for professional IP surveillance systems. Featuring AcuSense technology for human and vehicle analysis, this NVR supports up to 12 MP recording resolution and offers a robust set of features for efficient video management.

Advantages

AcuSense technology enables accurate human and vehicle detection, reducing false alarms. With 16 PoE ports delivering a total power budget of 200 W, it simplifies installation by powering cameras directly. The 4 SATA HDD bays support up to 16 TB each, providing ample storage for extended recording.

Suitable for

• Medium to large retail stores
• Office buildings
• Warehouses and logistics centers
• Educational campuses

Key specifications

• 16 IP camera channels
• 16 PoE ports (IEEE 802.3af/at) with 200 W budget
• Max recording resolution: 12 MP
• HDMI output up to 4K (3840 × 2160)
• Incoming bandwidth: 160 Mbps, outgoing: 256 Mbps
• 4 SATA HDD bays, up to 16 TB each
• 2x RJ-45 10/100/1000 Mbps Ethernet ports
• AcuSense: 4-ch human/vehicle analysis
• 16 alarm inputs, 4 alarm outputs
• 1-ch RCA audio input and output
• 1.5U rack-mountable chassis

Recommendations

For optimal performance, pair with Hikvision AcuSense cameras and use high-capacity surveillance-grade HDDs. Ensure proper ventilation in the rack cabinet to maintain operating temperature.
