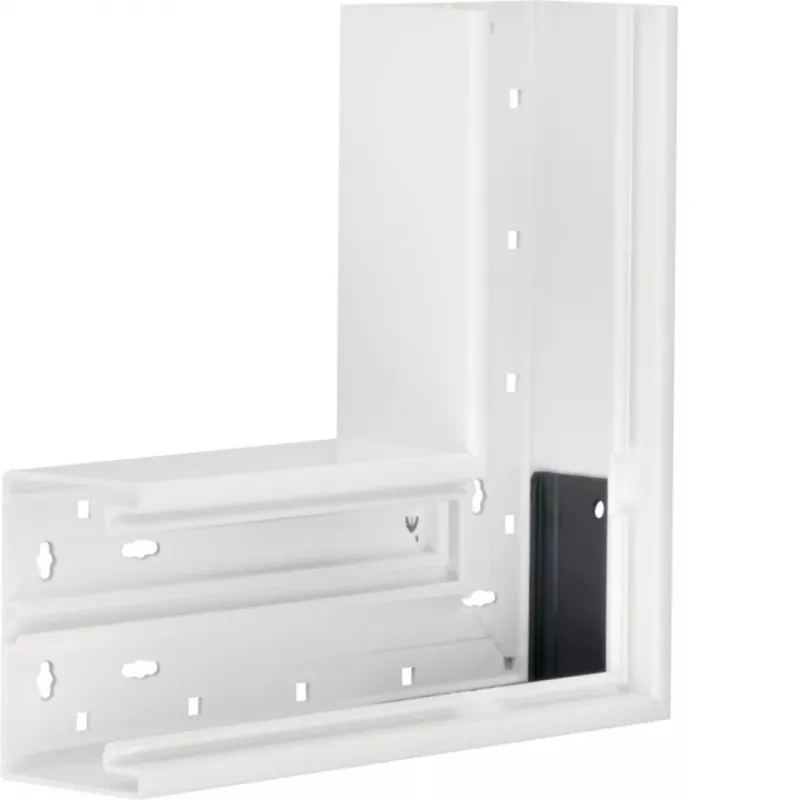

HAGER BR6510059016 επίπεδη γωνία λευκό 100x65 mm

Constructed from halogen-free PVC with a traffic white RAL 9016 finish, this flat angle provides a 90-degree bend for Hager BR series trunking measuring 100 x 65 mm. Its clip-on mounting and UV resistance make it suitable for wall and ceiling installations.

Overview

The HAGER BR6510059016 is a flat angle component designed for the Hager BR series cable trunking system. It allows a clean 90-degree change of direction in trunking runs, maintaining a neat and professional appearance. The traffic white colour (RAL 9016) matches standard trunking lengths for a seamless integration.

What stands out

• Halogen-free PVC material for enhanced safety in fire conditions
• Self-extinguishing fire behavior
• UV resistant for long-term durability
• Clip-on mounting for quick and secure installation
• Compatible with 100 x 65 mm trunking

Technical details

• Product type: Flat angle
• Trunking dimensions (W x H): 100 x 65 mm
• Angle: 90 degrees
• Colour: Traffic white (RAL 9016)
• Material: PVC
• Halogen-free: Yes
• Mounting type: Clip-on
• UV resistant: Yes
• Impact resistance: IK07
• Protection class: IP30
• Operating temperature: -5 to +60 °C
• Fire behavior: Self-extinguishing
• Suitable for wall installation: Yes
• Suitable for ceiling installation: Yes
• Number of trunking covers: 1

Our verdict

A reliable and safe choice for completing trunking installations, offering halogen-free construction and easy clip-on mounting.
