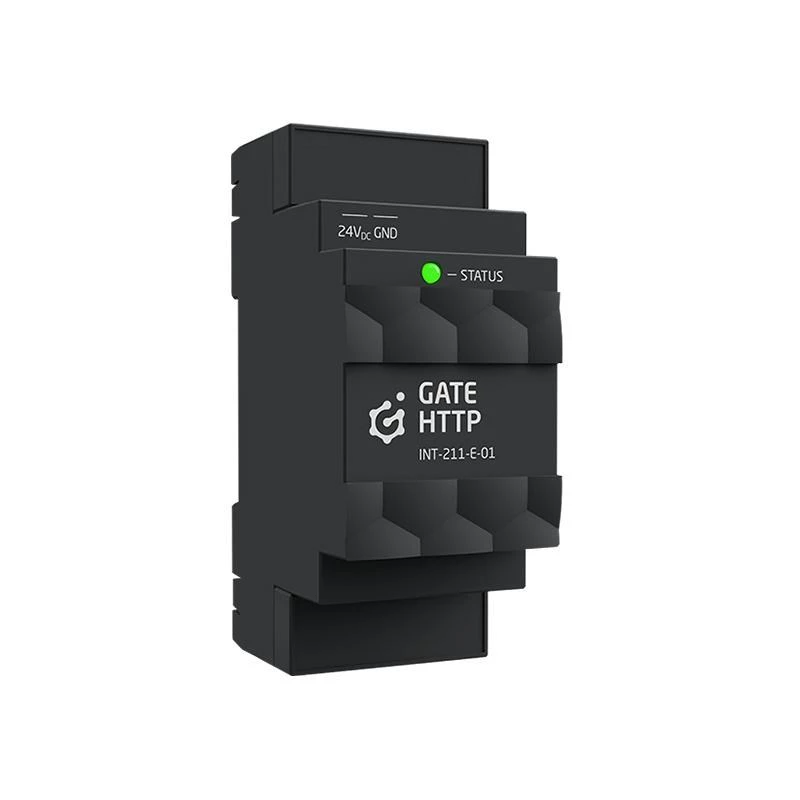

Grenton HTTP Integration Module DIN Rail Mounting Ethernet

The Grenton HTTP Integration Module (INT-211-E-01) is a compact DIN rail-mounted device designed for seamless integration of external systems, web services, and IoT platforms into the Grenton Smart Home System. It enables bidirectional data exchange via HTTP protocol (GET, POST, PUT, DELETE), allowing you to control and monitor third-party devices, retrieve data from web APIs, or trigger actions based on external events. The module communicates over Ethernet (RJ45) and is configured using Grenton Object Manager software. With a width of only 2 DIN modules (approx. 35mm), it fits neatly into standard electrical cabinets. Powered by 24V DC (max. 1.5W), it features LED indicators for power, status, and Ethernet link/activity. The robust PC/ABS plastic enclosure ensures durability, while CE and RoHS certifications guarantee compliance. Ideal for smart home automation, building management, and IoT applications.

Advantages

Enables integration of virtually any HTTP-based service or device into your Grenton system. Compact DIN rail design saves space. Low power consumption. Easy configuration via Grenton Object Manager. Secure encrypted communication within the Grenton ecosystem.

Suitable for

• Smart home automation projects requiring integration with web services or IoT platforms
• Building management systems (BMS) needing to interface with external APIs
• Automating actions based on weather data, calendar events, or other online sources
• Controlling IP cameras, smart locks, or other HTTP-enabled devices

Key specifications

• Product Type: HTTP Integration Module
• Mounting Type: DIN Rail (TS-35)
• Connectivity: Ethernet (RJ45)
• Communication Protocol: HTTP (GET, POST, PUT, DELETE)
• System Compatibility: Grenton Smart Home System (requires Grenton CLU)
• Power Supply: 24V DC
• Power Consumption: Max. 1.5W
• Operating Temperature: 0°C to 50°C
• Enclosure Material: PC/ABS Plastic
• LED Indicators: Power, Status, Ethernet Link/Activity
• Configuration Software: Grenton Object Manager
• Processor: ARM Cortex-M series
• Module Width: 2 DIN modules (approx. 35mm)
• Certifications: CE, RoHS
• Firmware Update: Via Grenton Object Manager
• Security: Encrypted communication within Grenton system

Recommendations

For optimal performance, ensure your Grenton CLU is updated to the latest firmware. Use a stable 24V DC power supply. The module is intended for indoor use only. For outdoor applications, house it in an appropriate weatherproof enclosure.
