Ενισχυτής τελικού σταδίου 16 καναλιών AUDAC DPA616

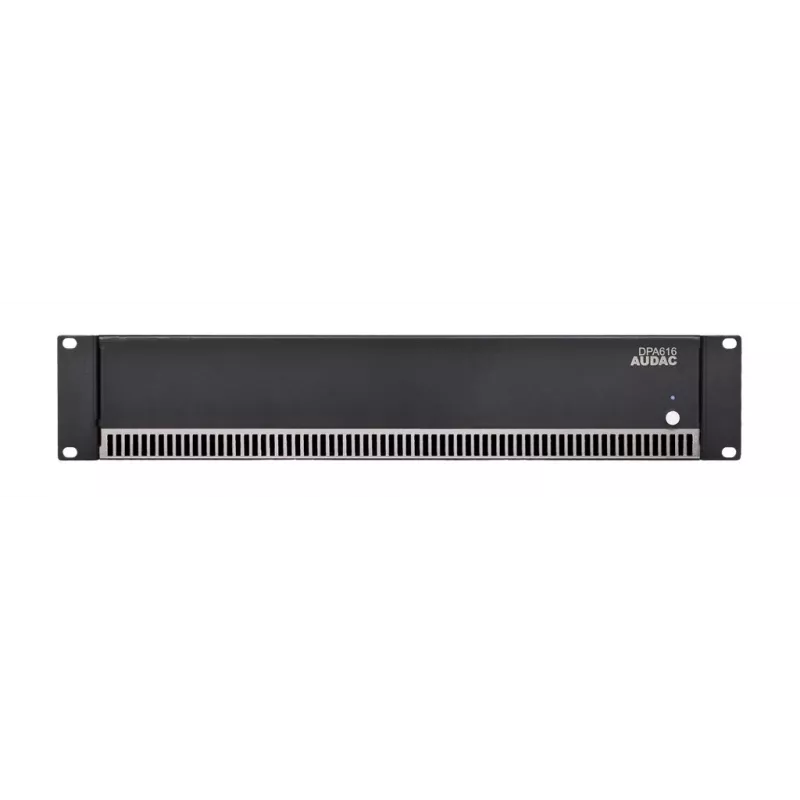

The AUDAC DPA616 is a professional 16-channel power amplifier designed for distributed audio systems in commercial and public address applications. Featuring advanced Class D technology and a switching mode power supply, it delivers efficient and reliable amplification for multi-zone installations.

Advantages

With 16 independent channels, the DPA616 offers flexible audio distribution for large-scale projects. Its energy-efficient Class D design reduces heat generation and power consumption, while the temperature-controlled fan ensures quiet operation. Comprehensive protection circuits (DC, short circuit, overheating, overload) safeguard the amplifier and connected speakers.

Suitable for

• Commercial background music systems
• Public address and paging systems
• Multi-zone audio installations in hotels, restaurants, and retail spaces
• Educational and corporate environments

Key specifications

• 16 channels, Class D amplifier
• RMS power: 60 W per channel @ 4 Ohm, 30 W per channel @ 8 Ohm
• Frequency response: 20 Hz - 20 kHz (+/- 3 dB)
• Signal-to-Noise Ratio: > 90 dB
• THD+N: < 0.05% (1 kHz, 1/8 rated power)
• Inputs: 16 x 3-pin Euroblock (balanced)
• Outputs: 16 x 2-pin Euroblock
• Rack space: 2U
• Power supply: 100-240 VAC, 50/60 Hz
• Max power consumption: 300 W, standby < 0.5 W

Recommendations

For optimal performance, pair the DPA616 with 70V/100V speaker systems or low-impedance speakers. Use balanced audio sources to minimize noise. The amplifier is ideal for installations requiring multiple independent audio zones.
