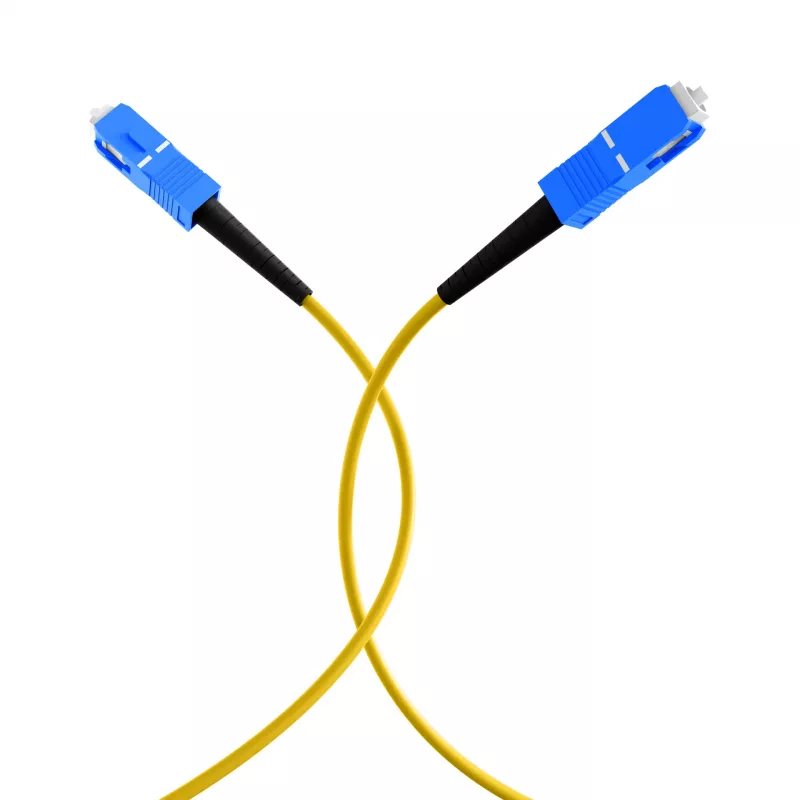

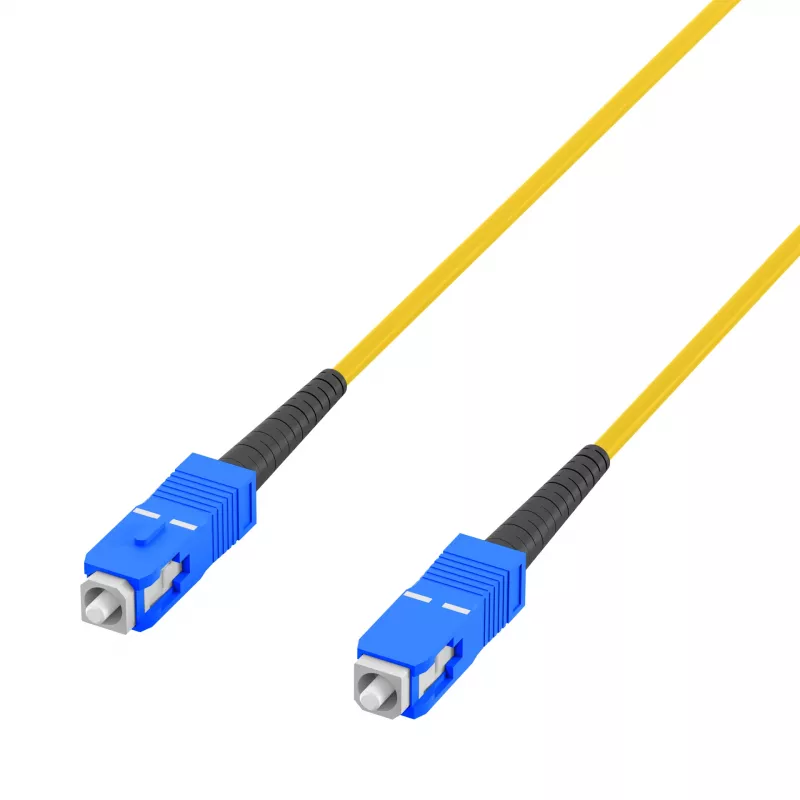

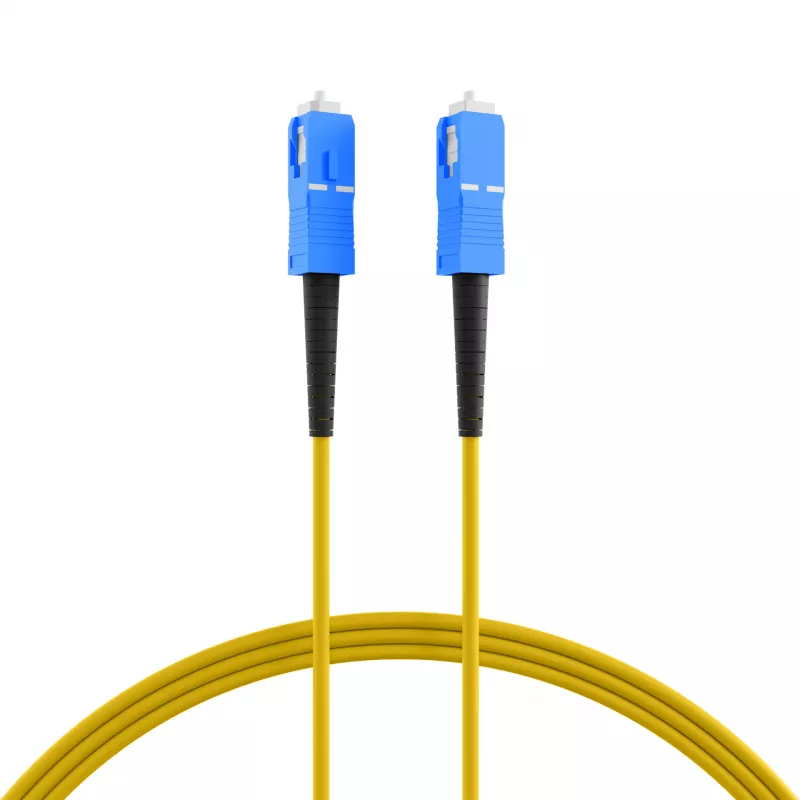

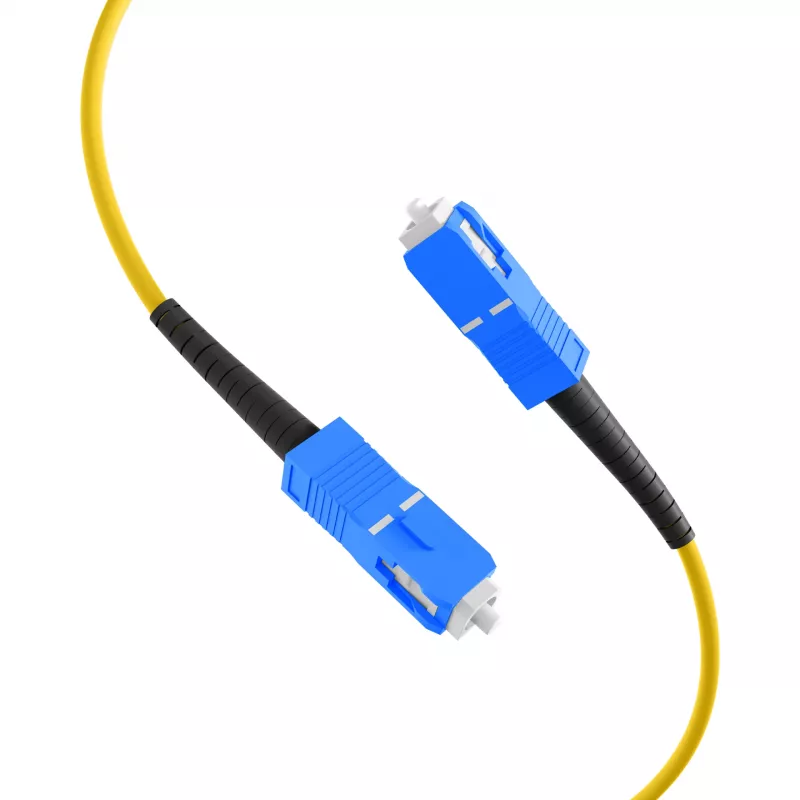

EFB Elektronik Simplex LWL Patchkabel SC-SC OS2 G657.A2 15m 3,0mm Gelb 9/125µm

The EFB Elektronik Simplex Fiber Optic Patch Cable SC-SC OS2 G657.A2 is a high-quality single-mode patch cable designed for reliable data transmission in indoor networking environments. With a length of 15 meters and a 3.0 mm diameter, this cable features bend-insensitive G657.A2 fiber, ensuring optimal performance even in tight installation spaces.

Advantages

This patch cable offers low insertion loss (<0.3 dB) and high return loss (>50 dB), ensuring minimal signal degradation and reliable connectivity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in case of fire, making it suitable for use in public and commercial buildings. The yellow color allows for easy identification of single-mode fiber.

Suitable for

• Data center and server room connections
• Telecommunications and network infrastructure
• FTTx and LAN applications
• Indoor fiber optic cabling

Key specifications

• Connector Type: SC to SC
• Fiber Mode: Single-mode (OS2)
• Fiber Type: G657.A2 (Bend-insensitive)
• Core/Cladding: 9/125 µm
• Polish: UPC
• Cable Length: 15 m
• Cable Diameter: 3.0 mm
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is ideal for use with SC-terminated equipment. Pair with EFB patch panels and couplers for a complete solution.
