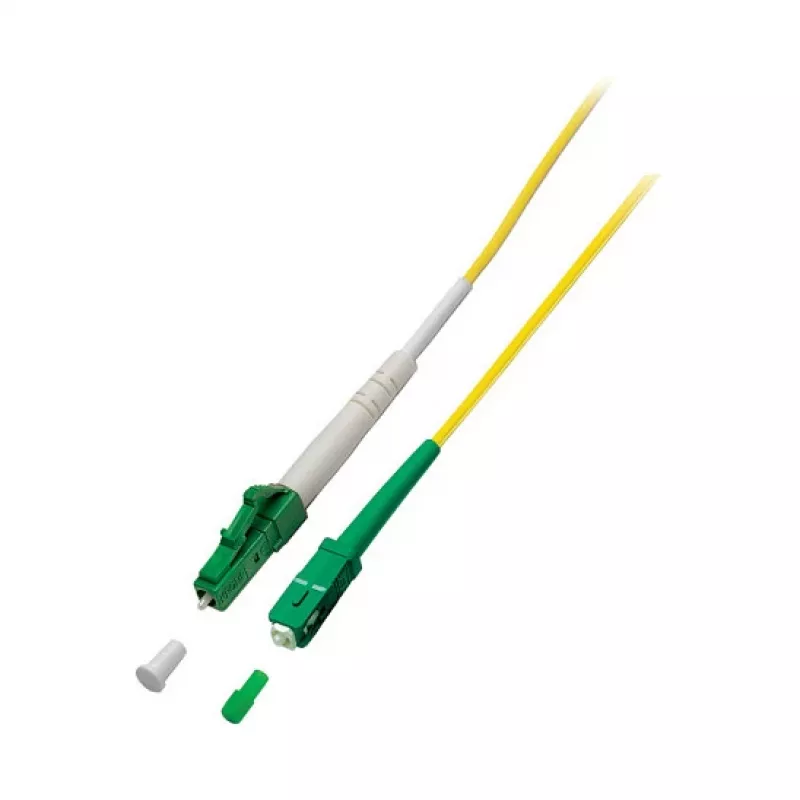

EFB Elektronik Simplex καλώδιο patch LC/APC σε SC/APC OS2 G657A2 5m LSZH 2mm κίτρινο

The EFB Elektronik Simplex Patch Cable O2531.5 is a high-performance fiber optic patch cable designed for reliable single-mode connections. With LC/APC to SC/APC connectors, OS2 fiber class, and a 5-meter length, this cable ensures low insertion loss and high return loss for demanding network environments. The LSZH jacket and 2mm diameter make it ideal for installations where space and safety are critical.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss ≤0.2 dB and return loss ≥60 dB. The G.657.A2 fiber standard provides improved bend resistance, allowing for tighter cable routing without performance degradation. The LSZH jacket reduces toxic smoke in case of fire, enhancing safety in confined spaces.

Suitable for

• Data centers and server rooms requiring high-density cabling
• FTTx (Fiber to the x) applications
• Telecommunications and CATV networks
• Industrial environments where flame retardancy is essential

Key specifications

• Connector A: LC/APC
• Connector B: SC/APC
• Fiber Mode: Single-mode OS2
• Fiber Standard: ITU-T G.657.A2
• Cable Length: 5 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 2 mm
• Cable Color: Yellow
• Insertion Loss (typical): ≤ 0.2 dB
• Return Loss (typical): ≥ 60 dB
• Ferrule Material: Zirconia Ceramic
• Core/Cladding Diameter: 9/125 µm
• Minimum Bend Radius: 7.5 mm
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC/APC and SC/APC ports. Store in a clean, dry environment.
