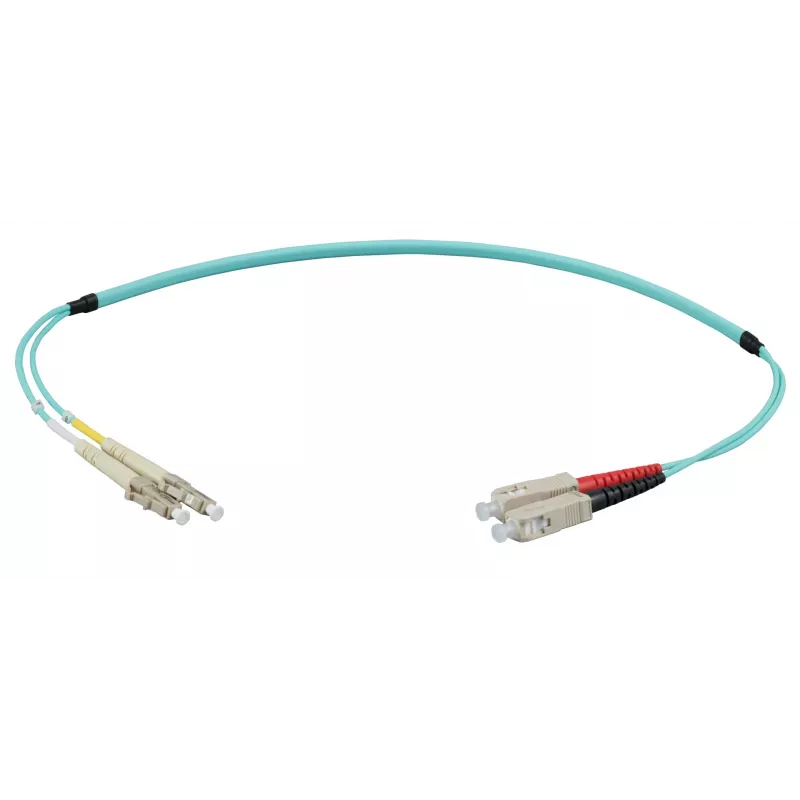

EFB Elektronik IPL-DF-LCUSCU-3-0050 Καλώδιο Patch Οπτικών Ινών 0,5 m OM3 LC σε SC Duplex LSZH Aqua

The EFB Elektronik IPL-DF-LCUSCU-3-0050 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 0.5 meters, this OM3 multimode cable features LC to SC duplex connectors and an LSZH (Low Smoke Zero Halogen) jacket, ensuring safety and performance. Ideal for 10 Gigabit Ethernet and Fibre Channel applications, it delivers low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers exceptional bandwidth and low attenuation, making it suitable for high-speed data centers and enterprise networks. The LSZH jacket reduces toxic smoke and fumes in case of fire, enhancing safety in confined spaces. Its durable construction ensures long-term reliability and easy installation.

Suitable for

• Data center cabling
• Enterprise network infrastructure
• Telecommunications rooms
• Fibre Channel storage area networks
• 10 Gigabit Ethernet connections

Key specifications

• Fiber Optic Standard: OM3 (50/125 µm)
• Connector Type A: LC Duplex
• Connector Type B: SC Duplex
• Cable Length: 0.5 m
• Fiber Count: 2 (Duplex)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Cable Outer Diameter: 3.0 mm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Modal Bandwidth: 1500 MHz·km at 850 nm, 500 MHz·km at 1300 nm
• Attenuation: ≤ 3.0 dB/km at 850 nm, ≤ 1.0 dB/km at 1300 nm
• Compliance: IEC 60794-2, TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC interfaces. Pair with OM3 patch panels and transceivers for best results.
