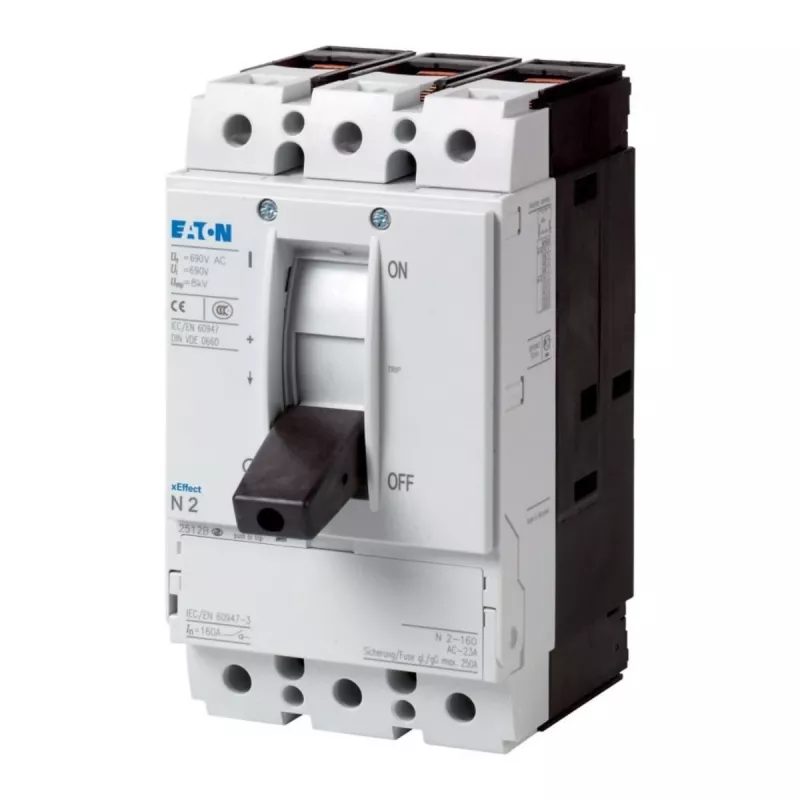

Eaton PN2-160 3-πολικός διακόπτης φορτίου 160A 690V AC 266005

The Eaton PN2-160 is a robust 3-pole switch-disconnector rated for 160 A operational current, making it suitable for demanding industrial applications. With a rated operational voltage of 690 V AC and a rated insulation voltage of 1000 V, it ensures reliable isolation and switching under high electrical stress.

Overview

Designed for base mounting, the PN2-160 features screw terminals capable of accepting conductors up to 1x 70 mm² solid or 2x 35 mm² stranded. Its 90° switching angle provides clear visual indication of the contact position, enhancing operational safety.

What stands out

• High rated short-time withstand current of 10 kA (1s)
• Rated conditional short-circuit current of 50 kA with a 160 A gG/gL fuse
• Long mechanical life of 20,000 operations and electrical life of 10,000 operations
• Wide operating temperature range from -25 °C to +50 °C

Technical details

• Number of poles: 3
• Rated operational current (Ie): 160 A
• Rated operational voltage (Ue): 690 V AC
• Rated insulation voltage (Ui): 1000 V
• Rated impulse withstand voltage (Uimp): 8 kV
• Rated frequency: 50/60 Hz
• Degree of protection (terminals): IP20
• Mounting type: base mounting
• Terminal type: screw terminals
• Max. terminal capacity: 1x 70 mm² solid / 2x 35 mm² stranded
• Standards: IEC/EN 60947-3
• Switching angle: 90°

Our verdict

The Eaton PN2-160 delivers dependable switching performance with high withstand ratings and a long service life, making it a solid choice for industrial power distribution and motor control circuits.
