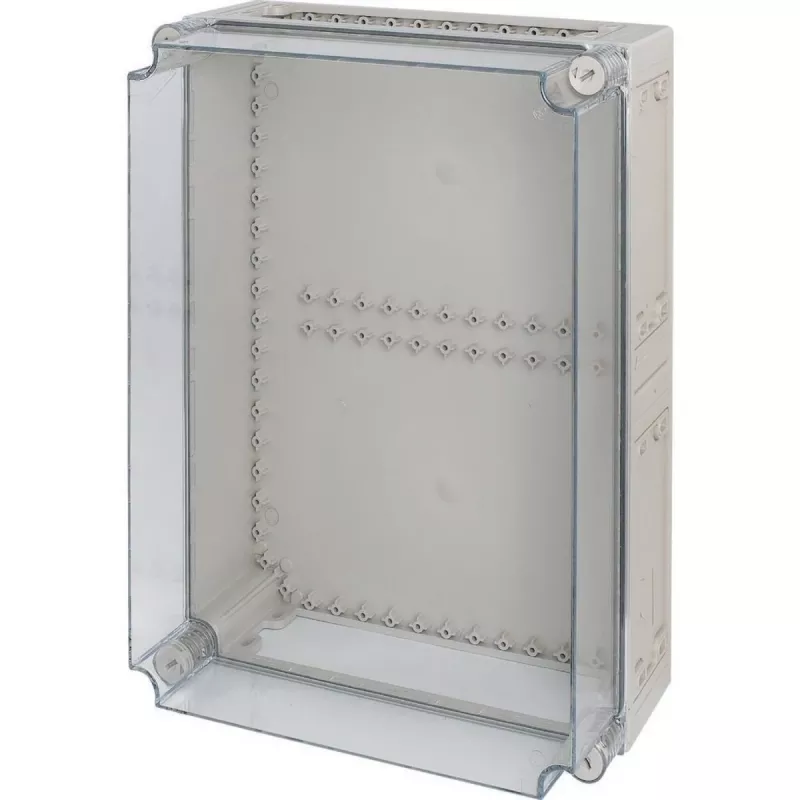

Eaton CI45-200 Θήκη μόνωσης, IP65, Ανοιχτό γκρι, 200mm 001896

This insulating enclosure from Eaton provides a robust and safe housing solution for electrical components, with a strong focus on protection against dust and water ingress thanks to its IP65 rating. The CI45-200 is constructed from high-quality insulating plastic, ensuring electrical safety and durability in demanding environments.

Advantages

The enclosure offers excellent mechanical impact resistance (IK08) and a wide operating temperature range from -25°C to +70°C, making it suitable for both indoor and outdoor applications. Its light grey RAL 7035 finish blends seamlessly into industrial and commercial settings. The surface-mounted design allows for easy installation on walls or panels, while the pre-stamped knockouts and gland plate readiness simplify cable entry.

Suitable for

• Distribution and junction boxes in industrial control systems
• Housing for circuit breakers, terminals, and DIN rail components
• Outdoor installations requiring weatherproof protection
• Applications in machinery, building automation, and renewable energy

Key specifications

• Enclosure type: Insulating enclosure, surface mounted
• Material: Plastic (insulating), light grey RAL 7035
• Protection class: IP65 (dust-tight and protected against water jets)
• Impact resistance: IK08 (5 joules)
• Rated insulation voltage: 1000 V; rated operational voltage: 690 V
• Operating temperature: -25 °C to +70 °C
• Glow-wire test: 750 °C (IEC 60695-2-1); flammability UL 94 V-2
• Door: Solid, grey, single door, prepared for locking (cylinder lock)
• Internal mounting: Mounting plate or DIN rail (accessories)

Recommendations

Ideal for electricians and panel builders seeking a reliable, high-insulation enclosure for protecting electrical connections and controls in harsh environments. Pair with Eaton's mounting plates and DIN rails for a complete solution.
