Διακόπτης δικτύου Strong SW5000M Gigabit Ethernet 5 θυρών 10 Gbit/s

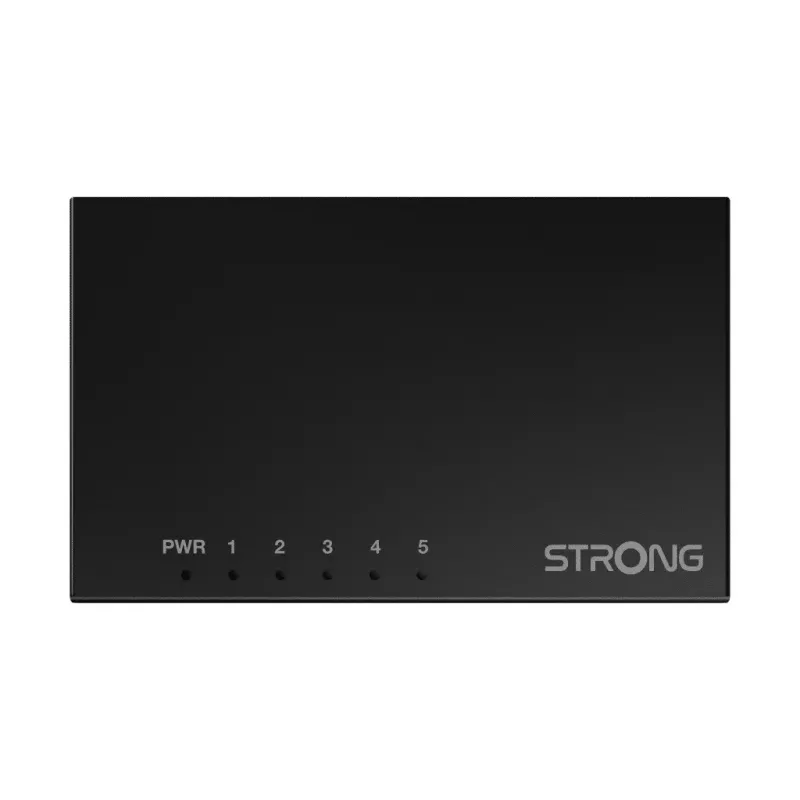

The Strong SW5000M network switch Gigabit Ethernet 5 ports 10 Gbit/s is a compact unmanaged Ethernet switch designed to expand wired Gigabit connectivity in small home or office environments. It offers five RJ-45 Gigabit ports (10/100/1000 Mbps) with Auto MDI/MDIX, a switching capacity of 10 Gbit/s and a MAC address table capable of handling up to 2000 entries. The switch is fanless for silent operation, housed in a black metal enclosure, operates from a 5 V DC input and can be positioned on a desk or mounted on a wall without additional configuration or software.

Advantages

The device provides straightforward plug-and-play operation with no setup required, allowing immediate extension of wired networks. Its Gigabit RJ-45 ports support adaptive speeds and Auto MDI/MDIX to simplify cable connections. The metal case and fanless design deliver a durable, quiet unit suitable for continuous operation. Wall-mount and desktop placement options offer flexible installation in constrained spaces.

Suitable for

• Expanding wired Ethernet in homes and small offices
• Connecting multiple devices such as PCs, smart TVs, NAS, and printers
• Wired connections for streaming, VoIP and low-latency gaming
• Temporary or permanent network extensions in compact installations

Key specifications

• Ports: 5 × RJ-45 Gigabit Ethernet (10/100/1000 Mbps) with Auto MDI/MDIX
• Switching capacity: 10 Gbit/s
• MAC address table: 2000 entries
• Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• Power input: 5 V DC
• Form factor: compact metal enclosure, fanless
• Colour: Black
• Weight: 0.13 kg

How to use

Place the switch on a flat surface or mount it to a wall using the integrated mounting points. Connect the power adapter to the 5 V DC input and plug it into a power outlet. Use standard Ethernet cables to connect your router, modem or networked devices to the RJ-45 Gigabit ports; Auto MDI/MDIX automatically handles straight-through or crossover cables. Power on the switch and confirm link/activity LEDs to ensure proper connections. No software configuration is needed for basic switching functions.

Recommendations

For reliable performance, use quality Cat5e or Cat6 Ethernet cables and position the switch in a well-ventilated, dry location away from direct heat sources. If you plan to connect multiple high-bandwidth devices simultaneously, distribute traffic between ports connected to different network segments to avoid exceeding the total switching capacity. Regularly check cable connections and LED indicators to troubleshoot link issues.
