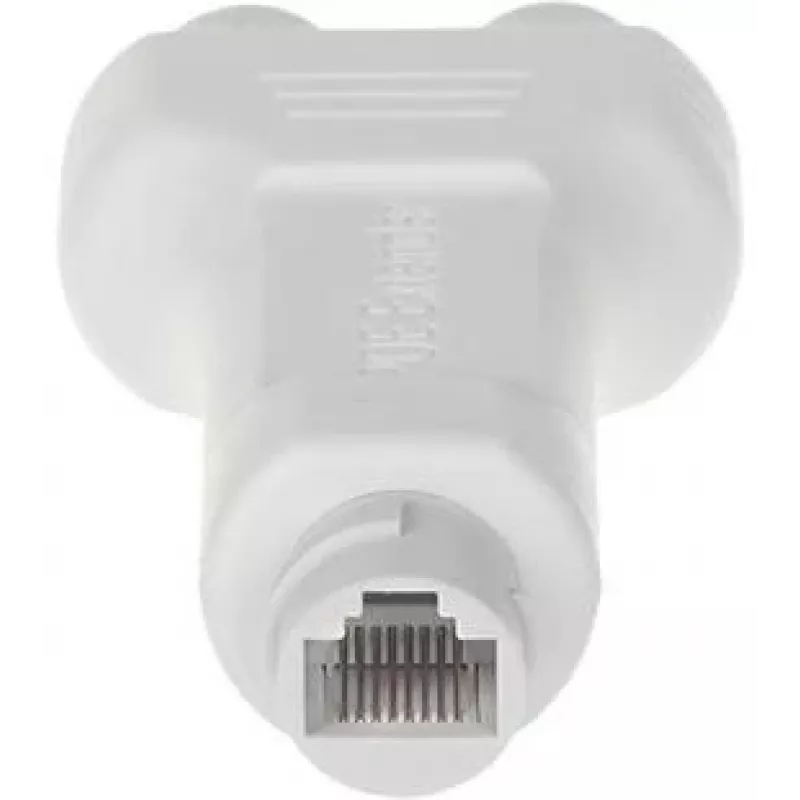

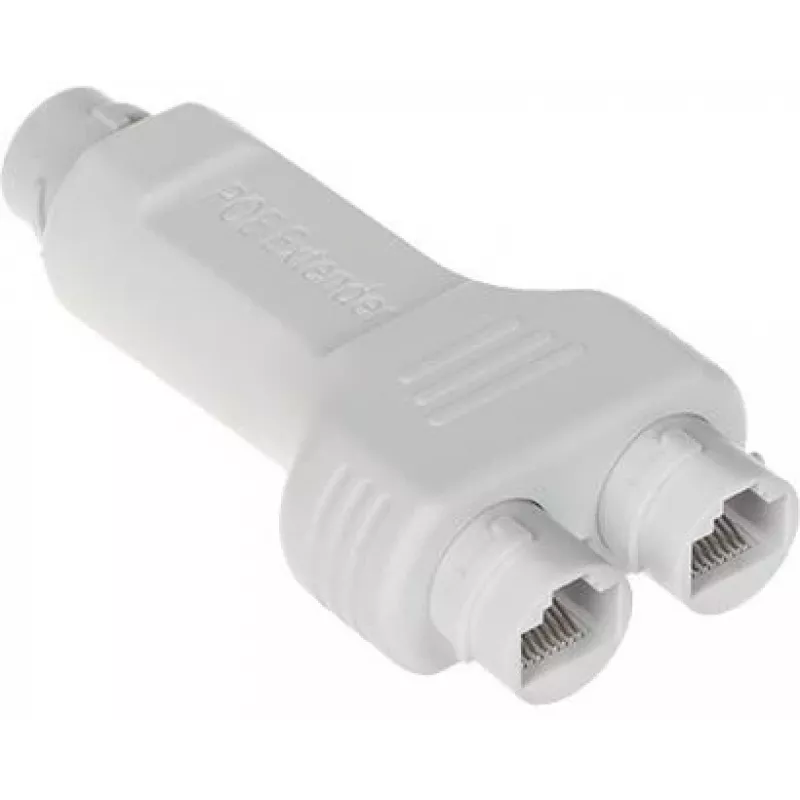

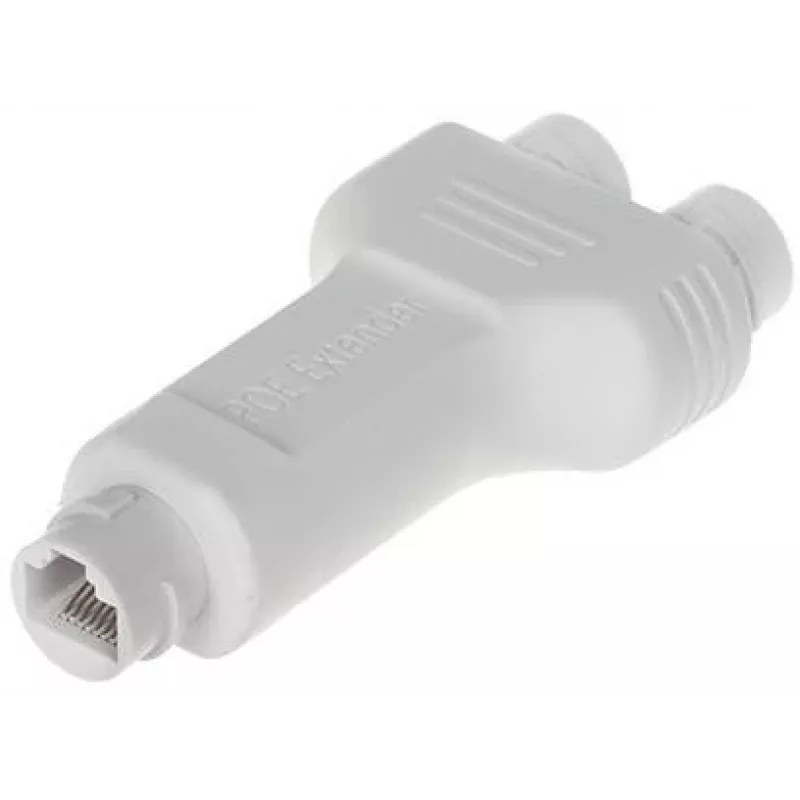

DELTA SPT-POE/2-POE-OUTDOOR-V2 PoE Extender εξωτερικού χώρου

The DELTA SPT-POE/2-POE-OUTDOOR-V2 is a robust outdoor PoE extender designed to extend Ethernet and Power over Ethernet connections up to 100 meters. Ideal for IP cameras, wireless access points, and other network devices in harsh environments, this extender features IP66 weatherproof housing and surge protection for reliable operation.

Advantages

Extends PoE and data up to 100 meters with plug-and-play installation. Supports IEEE 802.3af/at input and provides two PoE output ports (802.3af) with a total power budget of 24W. Rugged IP66-rated enclosure ensures operation in extreme temperatures from -30°C to +60°C. Built-in 4kV Ethernet surge protection safeguards connected equipment.

Suitable for

• Outdoor IP cameras and surveillance systems
• Wireless access points and bridges
• Industrial IoT devices in remote locations
• PoE-powered lighting and sensors

Key specifications

• Product Type: PoE Extender / Repeater
• Ethernet Ports: 3 (1x PoE Input, 2x PoE Output)
• Data Rate: 10/100 Mbps
• PoE Input: IEEE 802.3af/at (PoE/PoE+)
• PoE Output: IEEE 802.3af (PoE), up to 15.4W per port
• Total PoE Output Power: Up to 24W (from 802.3at input)
• Max Extension Distance: 100 meters
• Operating Environment: Outdoor, IP66
• Operating Temperature: -30°C to +60°C
• Surge Protection: 4kV (Ethernet)
• Power Consumption (Self): < 2W
• Mounting: Wall / Pole mount
• LED Indicators: Power, PoE Status (Input/Output)
• Housing Material: UV-resistant ABS Plastic
• Transmission Mode: Store and Forward
• Installation: Plug and Play

Recommendations

For optimal performance, use with a PoE+ switch or injector to achieve full 24W output. Ensure proper grounding for surge protection. Suitable for outdoor installations where network extension beyond 100m is required.
