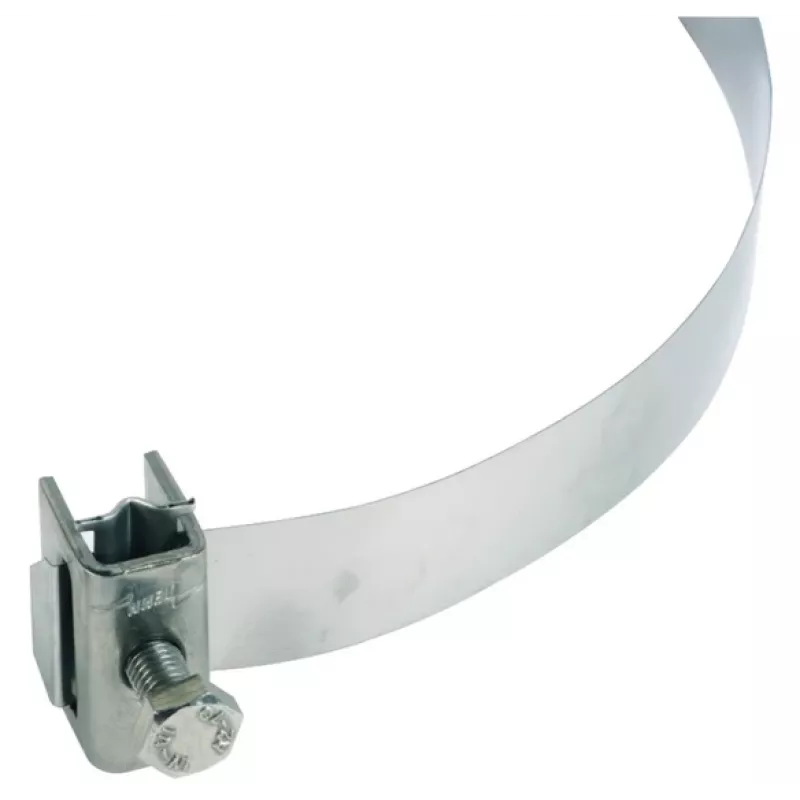

DEHN σφιγκτήρας ταινίας-σωλήνα B 25mm ανοξείδωτο ατσάλι 106323

Installers and maintenance crews working on lightning protection systems use the DEHN Band Pipe Clamp B 25mm to secure round conductors to pipes. This stainless steel clamp is built for reliable earthing and equipotential bonding in both indoor and outdoor environments.

Key specifications

• Band width: 25 mm
• Material: Stainless steel (NIRO)
• Conductor type: Round conductor
• Conductor diameter range: 8 - 10 mm
• Max. pipe diameter: 100 mm
• Connection method: Screw clamp
• Mounting type: Pipe mounting
• Fastening mechanism: Bolt/nut
• Corrosion resistance: High
• UV resistance: Yes
• Standard compliance: EN 62561-1
• Colour: Metallic silver

Why choose it

The DEHN Band Pipe Clamp offers high corrosion resistance and UV stability, ensuring long-term performance in harsh conditions. Its flexible band design accommodates various pipe diameters, and the screw clamp provides a secure connection for round conductors.

Ideal use cases

• Lightning protection systems
• Earthing and equipotential bonding
• Indoor and outdoor installations

Good to know

This clamp is designed for a single round conductor and complies with EN 62561-1, the standard for lightning protection components.
