DEHN 585320 Καλώδιο ισοδυναμικής σύνδεσης σε ρολό, 0,75 mm², 50 m, Μπλε

This 50 m reel of blue equipotential bonding wire from DEHN features a fine-stranded copper conductor with a cross-section of 0.75 mm², rated for 300/500 V and suitable for operating temperatures from -5°C to +70°C.

Overview

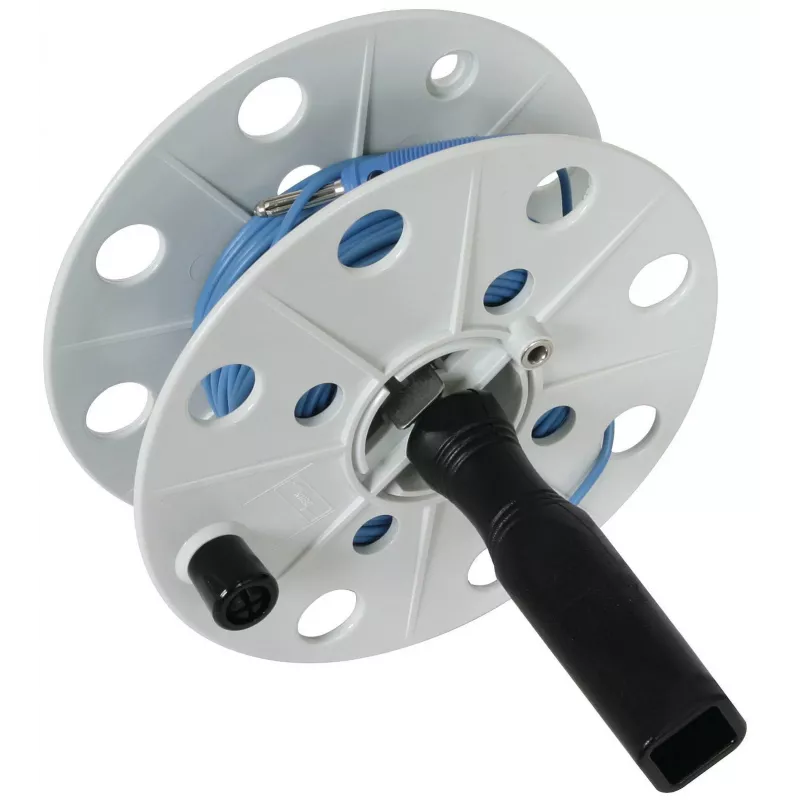

The DEHN 585320 is a single-core flexible wire supplied on a plastic reel, designed for equipotential bonding, protective earthing, and control circuits. The conductor is made of flexible copper (Class 5) with PVC insulation, ensuring durability and ease of installation. With an approximate outer diameter of 2.7 mm, it is compact and suitable for various applications.

What stands out

• 50 m length on a convenient plastic reel
• Fine-stranded copper conductor for flexibility
• PVC insulation with flame retardant properties (IEC 60332-1-2)
• Rated voltage 300/500 V

Technical details

• Conductor cross-section: 0.75 mm²
• Wire colour: Blue
• Number of cores: 1
• Conductor material: Flexible copper (Class 5)
• Insulation material: PVC
• Approx. outer diameter: 2.7 mm
• Operating temperature range: -5°C to +70°C
• Flammability rating: Flame retardant (IEC 60332-1-2)

Our verdict

A reliable and flexible bonding wire on a practical reel, ideal for earthing and control applications.
