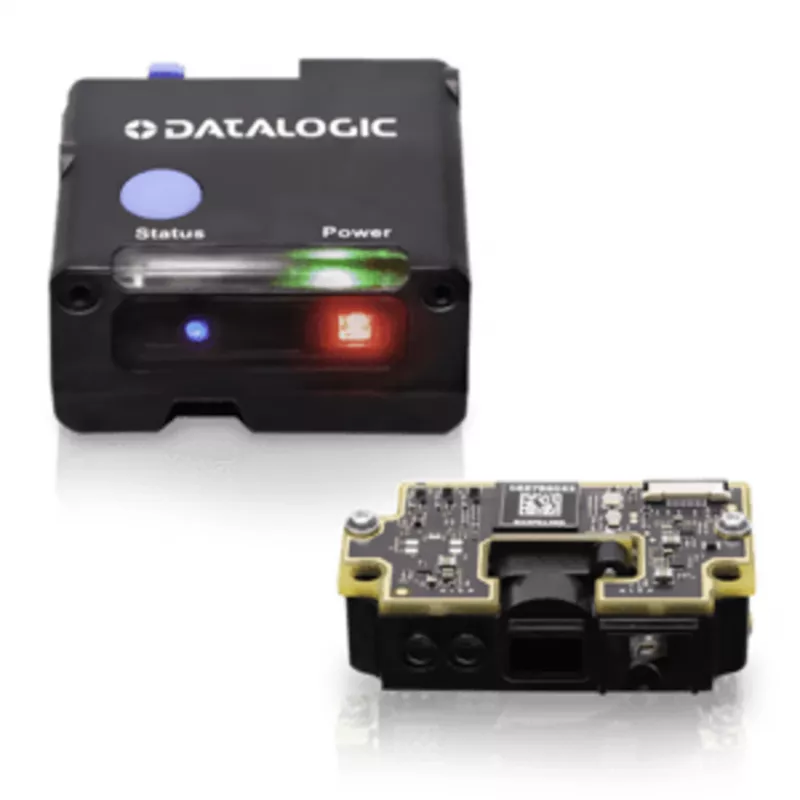

Datalogic Gryphon I GFE4590 2D MP Red Illumination σαρωτής barcode

The Datalogic Gryphon I GFE4590 is a high-performance fixed mount 2D barcode scanner designed for fast and reliable scanning of 1D, 2D, postal codes, and Digimarc barcodes. With its red illumination and advanced 4-dot aimer, it ensures accurate capture even on challenging surfaces. This wired scanner supports USB and RS-232 interfaces, making it versatile for various point-of-sale and industrial applications.

Advantages

Exceptional reading performance with a megapixel sensor and red illumination. Durable design with IP52 rating and 1.2 m drop resistance. Wide input voltage range (5-14 VDC) for flexible integration. ESD protection up to 16 kV ensures reliability in static-sensitive environments.

Suitable for

• Retail checkout counters
• Warehouse and logistics
• Healthcare and laboratory settings
• Manufacturing and production lines

Key specifications

• Scanner Type: Fixed Mount 2D Imager
• Scanning Capability: 1D, 2D, Postal Codes, Digimarc
• Imager Sensor Resolution: 1280 x 800 pixels
• Illumination: Red (630 nm)
• Aiming System: 4-Dot Aimer with Center Cross (650 nm)
• Connectivity Technology: Wired
• Interfaces: USB (HID Keyboard, COM), RS-232
• Input Voltage: 5 - 14 VDC
• Current Consumption: 300 mA @ 5 V
• Operating Temperature: -20 to 50 °C
• IP Rating: IP52
• Drop Resistance: 1.2 m to concrete
• Field of View: 48° (H) x 30° (V)
• Print Contrast Ratio: 25%
• Reading Indicators: Beeper, Good Read LED
• ESD Protection: 16 kV
• Housing Material: Plastic

Recommendations

For optimal performance, use with Datalogic's recommended cables and power supplies. This scanner is ideal for environments requiring high-speed, hands-free scanning.
