Cimco 187736 Διπλός ακροδέκτης 1 mm² ημιαπομονωμένος κίτρινο 100 τεμ.

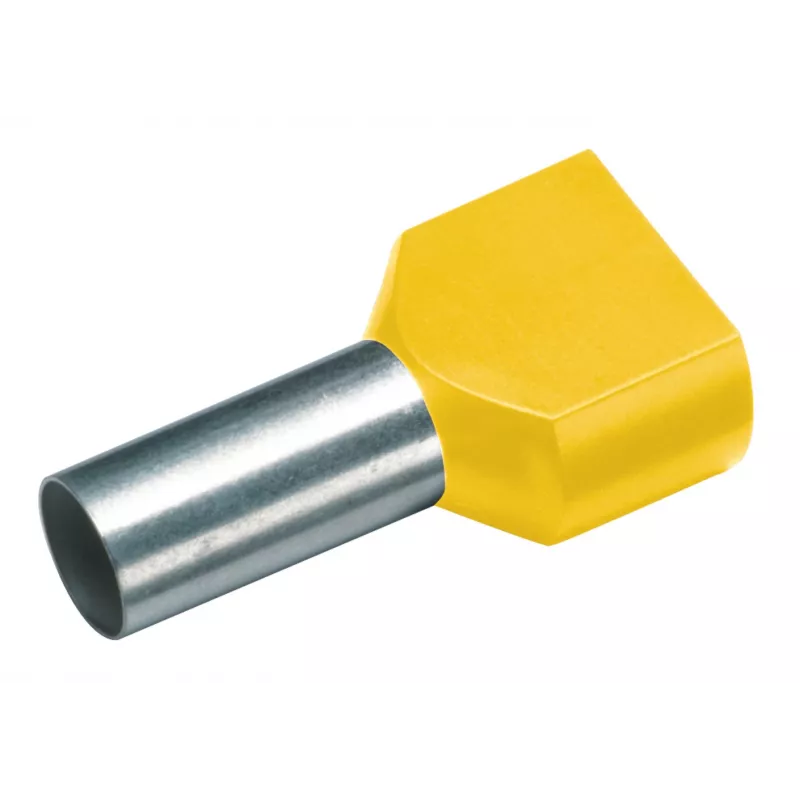

The Cimco 187736 twin wire end sleeve is a specialized ferrule for terminating two fine-stranded conductors of equal cross-section in a single crimp. Its yellow polypropylene collar provides reliable insulation and colour-coded identification for 1 mm² conductors, making it a practical choice for control cabinets and switchgear where space is tight and dual-wire connections are required.

Highlights

• Twin wire design accepts two 1 mm² conductors in one sleeve
• Partially insulated with yellow polypropylene collar for easy identification
• Tin-plated electrolytic copper sleeve ensures low contact resistance
• Halogen-free and RoHS compliant
• Pack of 100 pieces for efficient bulk use

In daily use

These ferrules are crimped onto stripped wire ends to create a secure, gas-tight connection. The twin entry allows two wires to be terminated together, reducing the number of connection points. The yellow insulation collar provides strain relief and prevents wire strands from splaying, while the tin plating protects against corrosion. Suitable for fine-stranded conductors in electrical wiring and industrial applications.

Full specifications

• Conductor cross-section: 1 mm²
• Insulation type: partially insulated
• Insulation material: polypropylene (PP)
• Insulation colour: yellow
• Sleeve material: electrolytic copper, tin-plated
• Quantity per pack: 100 pieces
• Sleeve length (metal part): 8 mm
• Total length: 14.5 mm
• Insulation collar diameter: 4.5 mm
• Temperature range: -40°C to +105°C
• Voltage rating: 300V / 600V
• Standard compliance: DIN 46228 Part 4
• Halogen-free: Yes
• RoHS compliant: Yes

Final note

For reliable dual-wire terminations in demanding electrical environments, the Cimco 187736 offers consistent quality and compliance with DIN standards.
