BKL Electronic 0412001 Βύσμα FME, Ίσιο, 50 Ohm, Crimp, 1 τεμ.

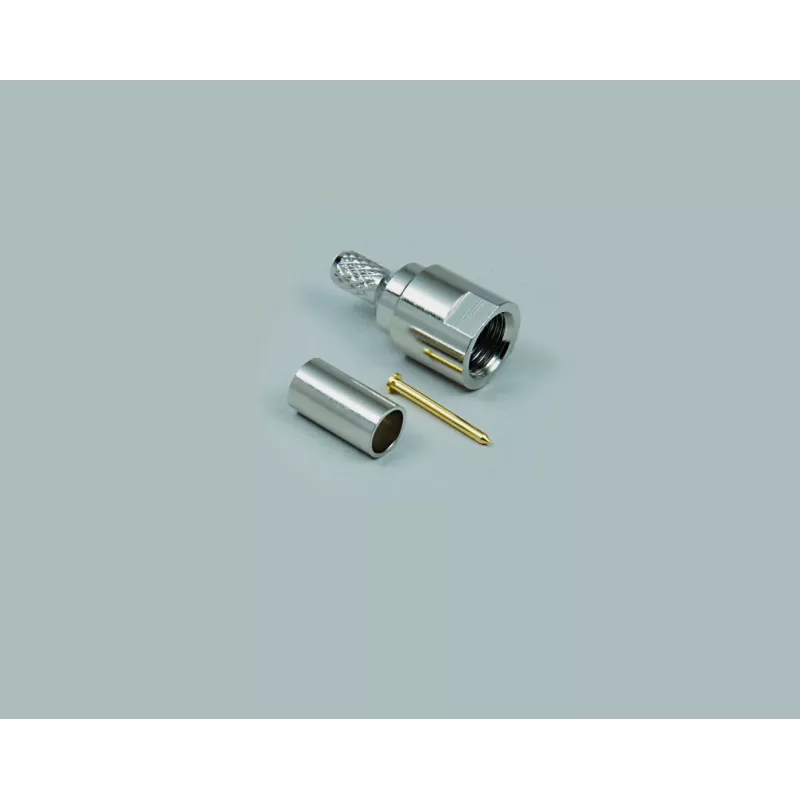

FME plug connector with straight body style and 50 Ohm impedance, engineered for reliable crimp termination on RG 58 and H 155 coaxial cables. Its gold-plated center contact and nickel-plated brass body ensure low contact resistance and long-term durability.

Advantages

Gold-plated center contact delivers excellent conductivity and corrosion resistance. PTFE insulator supports stable performance across a wide temperature range. Crimp termination provides a secure, vibration-resistant connection for mobile and fixed installations.

Suitable for

• RF connections in automotive and marine antennas
• Coaxial cable assemblies for communication equipment
• Test and measurement setups requiring 50 Ohm impedance

Key specifications

• Connector series: FME
• Connector type: Plug (male)
• Body style: Straight
• Impedance: 50 Ohm
• Termination method: Crimp
• Cable compatibility: RG 58, H 155
• Contact plating: Gold
• Body plating: Nickel
• Body material: Brass
• Insulator material: PTFE
• Frequency range: DC to 3 GHz
• Voltage rating (RMS): 500 V
• Operating temperature range: -40°C to +85°C
• Mounting type: Cable mount
• Dielectric withstanding voltage: 1500 V
• Insulation resistance: ≥ 5000 MΩ
• Contact resistance (center): ≤ 1.5 mΩ
• Contact resistance (outer): ≤ 1 mΩ
• Durability: ≥ 500 mating cycles

Recommendations

For best results, use a crimp tool designed for FME connectors and follow the cable preparation dimensions recommended by the cable manufacturer.
