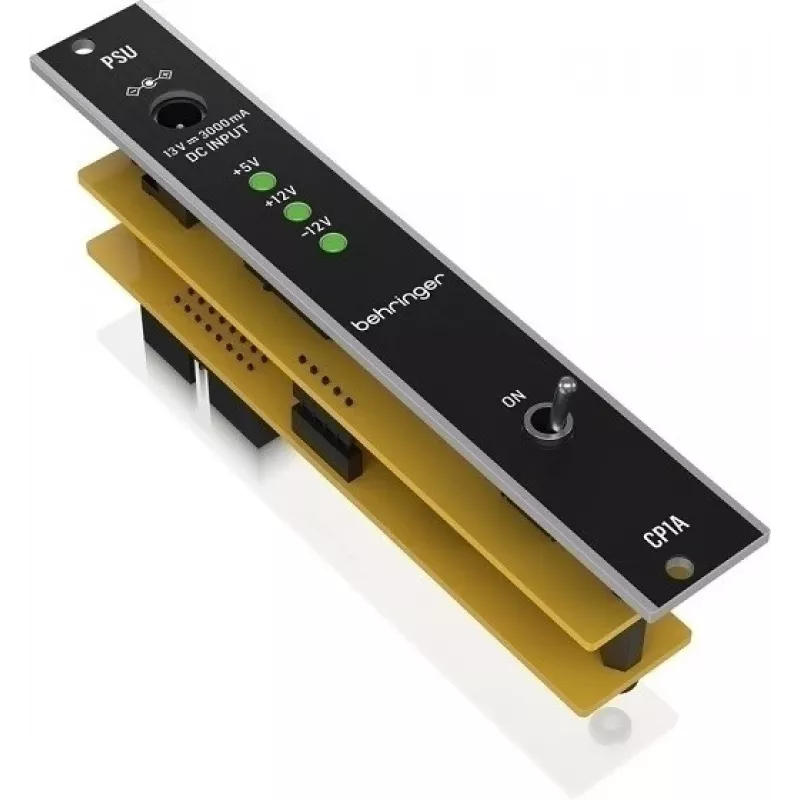

Behringer CP1A μονάδα τροφοδοσίας Eurorack (4 HP, 1000mA, +12V/-12V/+5V)

The Behringer CP1A is a high-performance Eurorack power supply module designed to deliver clean and reliable power to your modular synthesizer system. With a compact 4 HP footprint, it provides up to 1000 mA on each of the +12V, -12V, and +5V rails, ensuring ample power for a wide range of modules. The CP1A features overload, short circuit, and reverse polarity protection, along with a power status LED for easy monitoring. It requires an external 12V DC adapter (not included) and includes two 16-pin shrouded bus board connectors for easy integration into your Eurorack case.

Advantages

Compact 4 HP design saves valuable rack space while delivering robust power. Triple-rail output (+12V, -12V, +5V) with 1000 mA per rail supports diverse module configurations. Built-in protection circuits safeguard your modules against common electrical faults. LED indicator provides clear power status at a glance.

Suitable for

• Eurorack modular synthesizer systems requiring a dedicated power supply module
• Expanding existing Eurorack cases with additional power capacity
• DIY Eurorack cases where a compact, reliable power solution is needed

Key specifications

• Module Type: Eurorack Power Supply
• HP Size: 4 HP
• Max +12V Output Current: 1000 mA
• Max -12V Output Current: 1000 mA
• Max +5V Output Current: 1000 mA
• Input Voltage: 12V DC (External Adapter Required)
• Input Connector Type: DC Barrel Jack (2.1mm center positive)
• Number of Bus Board Connectors: 2 (16-pin shrouded)
• Power Rails Supported: +12V, -12V, +5V
• Overload Protection: Yes
• Short Circuit Protection: Yes
• Reverse Polarity Protection: Yes
• LED Indicators: Power Status LED
• Module Depth: 45 mm (1.77 inches)
• Compatibility: Eurorack Standard
• Mounting: Standard Eurorack Rail Mounting
• External Power Adapter: Not Included

Recommendations

For optimal performance, use a high-quality 12V DC power adapter with at least 3A output. Ensure proper ventilation around the module to prevent overheating. Always power off your system before installing or removing modules.
