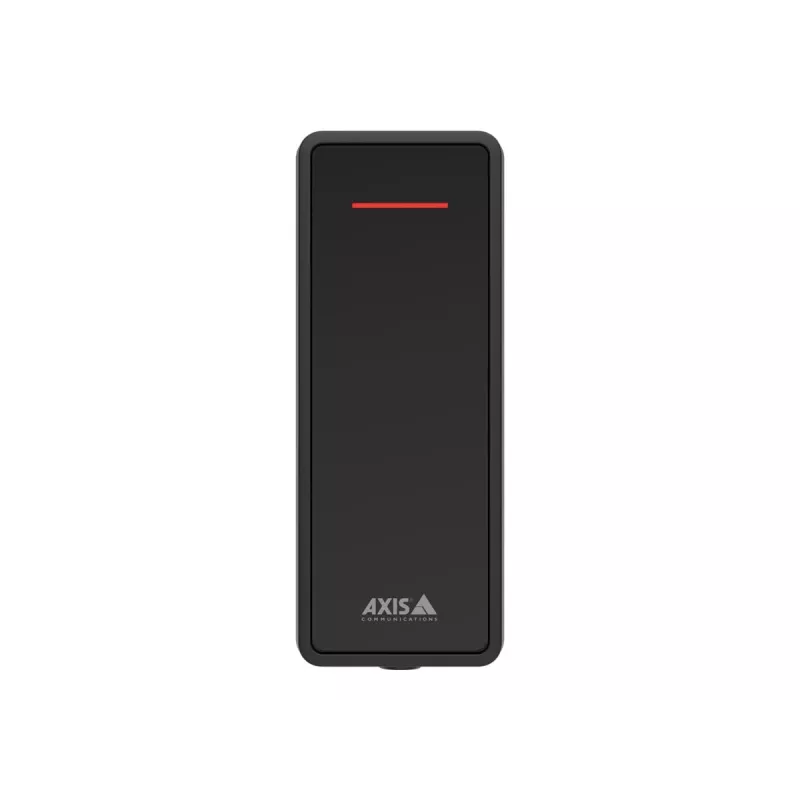

Axis A4030-E Reader - Αναγνώστης RFID χωρίς επαφή

The Axis A4030-E Reader is a high-performance RFID contactless reader designed for secure access control applications. It supports multiple credential technologies including MIFARE, FeliCa, and NFC, and communicates via OSDP for enhanced security. With IP65-rated weatherproof housing and wide temperature tolerance, it is suitable for both indoor and outdoor installations.

Advantages

Supports a wide range of credential types, including MIFARE Classic, MIFARE Plus, MIFARE DESFire EV1/EV2/EV3, FeliCa, and NFC Forum Tags. Features OSDP Secure Channel with AES-128 encryption and an EAL6+ certified secure element for robust security. Power over Ethernet (PoE) simplifies installation, while the rugged IP65, NEMA 4X, and IK07 rated enclosure ensures durability in harsh environments.

Suitable for

• Secure access control for office buildings, data centers, and government facilities
• Integration with Axis network door controllers (A1001, A1601, A1210, A1214)
• Outdoor and indoor installations requiring weatherproof and tamper-resistant readers

Key specifications

• Reader Type: RFID, NFC
• Supported Frequencies: 13.56 MHz (High Frequency)
• Communication Protocol: OSDP v2.1.7, v2.2
• Power Supply: PoE IEEE 802.3af/802.3at Type 1 Class 2 (max 6.49 W), 12-24 V DC (max 5.5 W)
• Environmental Protection: IP65, NEMA 4X, IK07
• Operating Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
• Read Range: Up to 4 cm (1.6 in)
• Connectivity: 1x RJ45 for Ethernet/PoE, 1x 6-pin terminal block for DC power/OSDP

Recommendations

For optimal performance, pair the Axis A4030-E Reader with Axis network door controllers and use OSDP Secure Channel for encrypted communication. Ensure proper mounting on a single gang box for secure installation.
