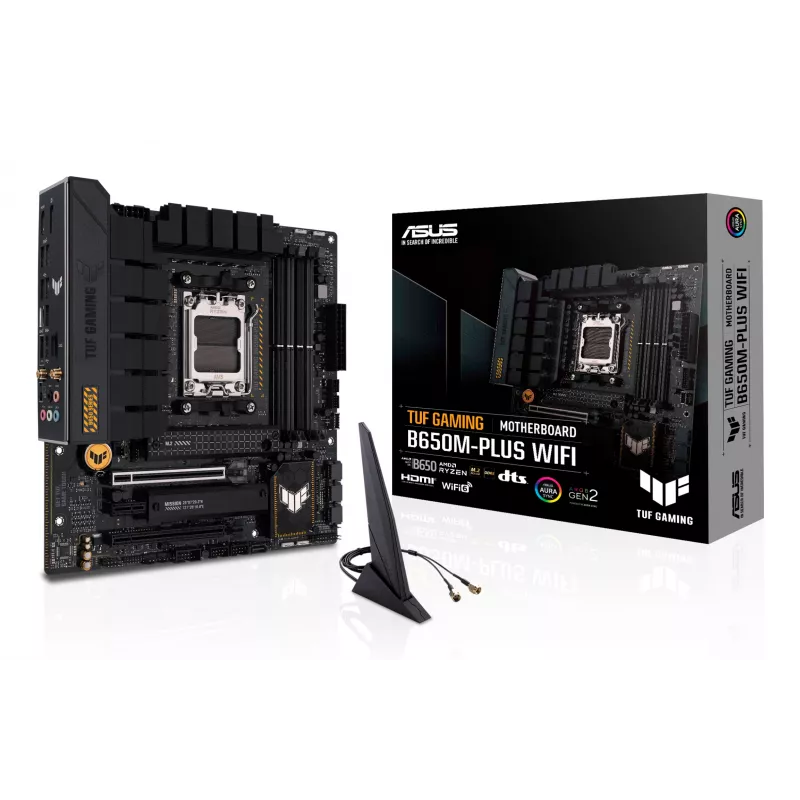

ASUS TUF GAMING B650M-PLUS WIFI Μητρική πλακέτα Socket AM5

Built around the AMD B650 chipset and AM5 socket, the ASUS TUF Gaming B650M-PLUS WIFI delivers PCIe 5.0 M.2 storage and DDR5 memory support up to 6400+ MHz (OC) for next-gen performance. Its military-grade components, robust power design, and comprehensive cooling ensure rock-solid stability for gaming and content creation.

Overview

The TUF Gaming B650M-PLUS WIFI is a micro-ATX motherboard engineered for AMD Ryzen 7000/8000 series processors. It features a 12+2 DrMOS power stage, enlarged VRM heatsinks, and hybrid fan headers for optimal thermal performance. With Wi-Fi 6, 2.5Gb Ethernet, and Bluetooth 5.2, you get high-speed wired and wireless connectivity. Two M.2 slots (one PCIe 5.0, one PCIe 4.0) and four SATA 6Gb/s ports provide flexible storage options.

What stands out

• PCIe 5.0 M.2 slot for ultra-fast NVMe SSDs
• DDR5 memory support up to 128 GB, 6400+ MHz (OC)
• Wi-Fi 6 and 2.5Gb Ethernet for low-latency networking
• Military-grade TUF components for durability
• Comprehensive cooling with VRM and M.2 heatsinks
• USB 3.2 Gen 2x2 Type-C port for 20 Gbps transfers

Technical details

• Socket: AMD AM5
• Chipset: AMD B650
• Form factor: Micro-ATX
• Memory: 4 x DDR5 DIMM, max 128 GB, speeds up to 6400+ MHz (OC)
• Expansion slots: 1 x PCIe 4.0 x16 (SafeSlot Core+), 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1
• Storage: 1 x M.2 PCIe 5.0 x4, 1 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s
• Networking: Realtek 2.5Gb Ethernet, Wi-Fi 6 (802.11ax), Bluetooth 5.2
• Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
• Rear USB: 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A
• Video outputs: 1 x DisplayPort, 1 x HDMI
• Power connectors: 1 x 24-pin Main, 1 x 8-pin +12V, 1 x 4-pin +12V
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Our verdict

The ASUS TUF Gaming B650M-PLUS WIFI strikes an excellent balance between performance and durability, making it a top choice for gamers and PC builders seeking a reliable AM5 platform with modern connectivity.
