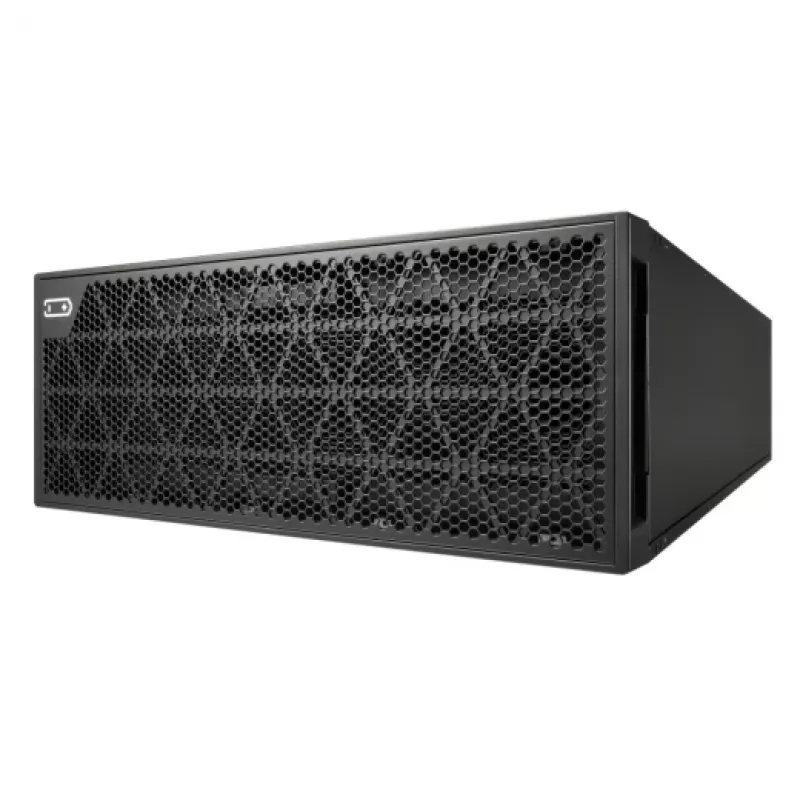

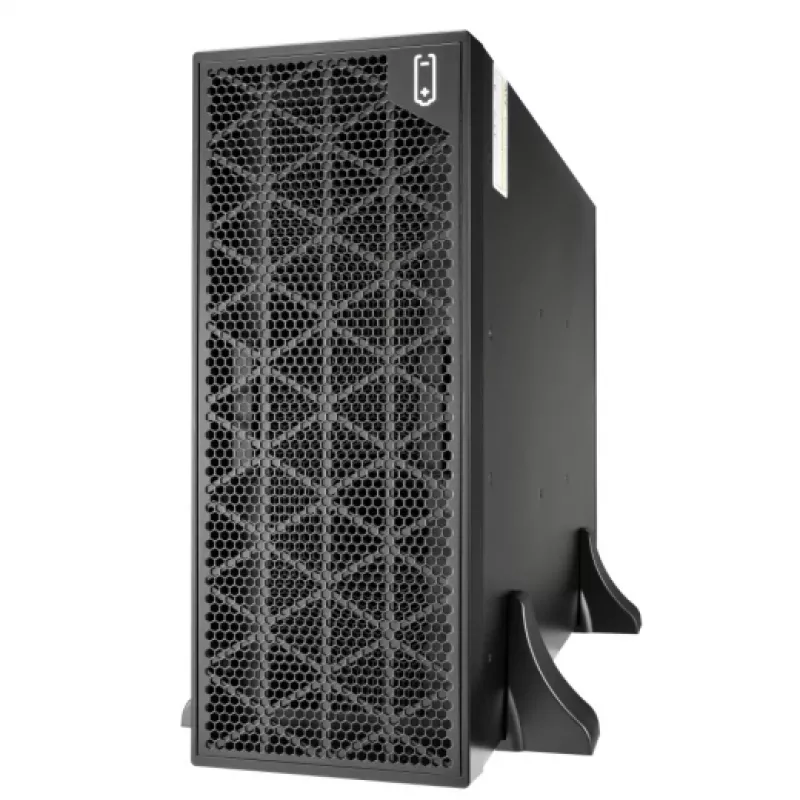

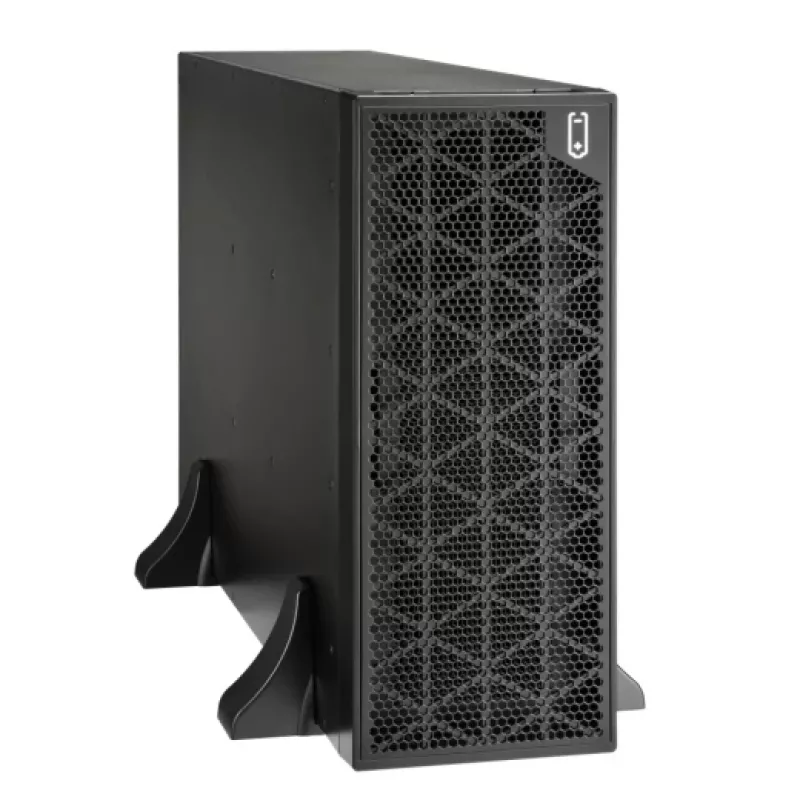

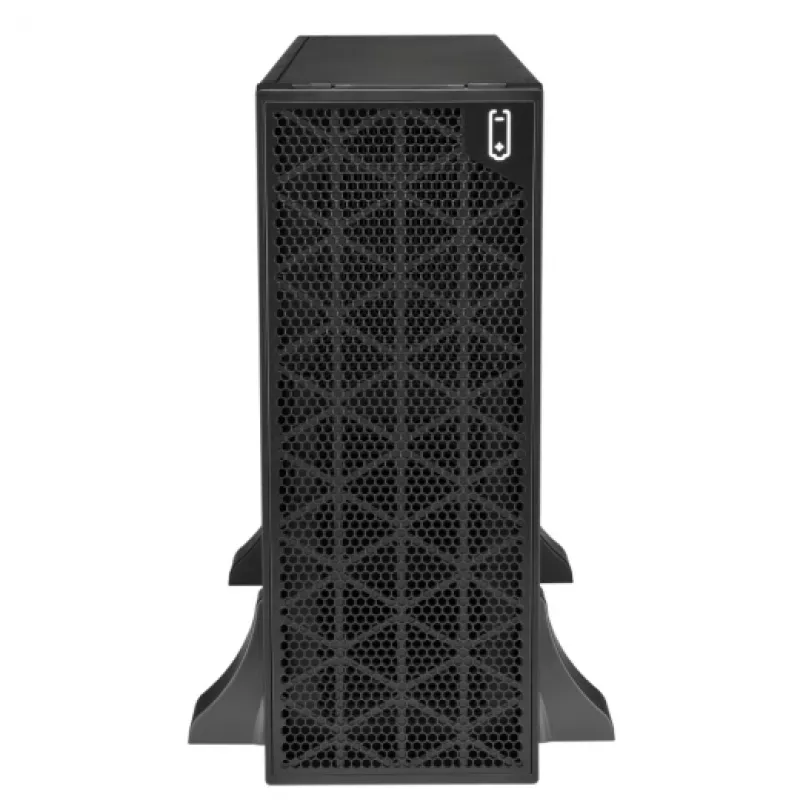

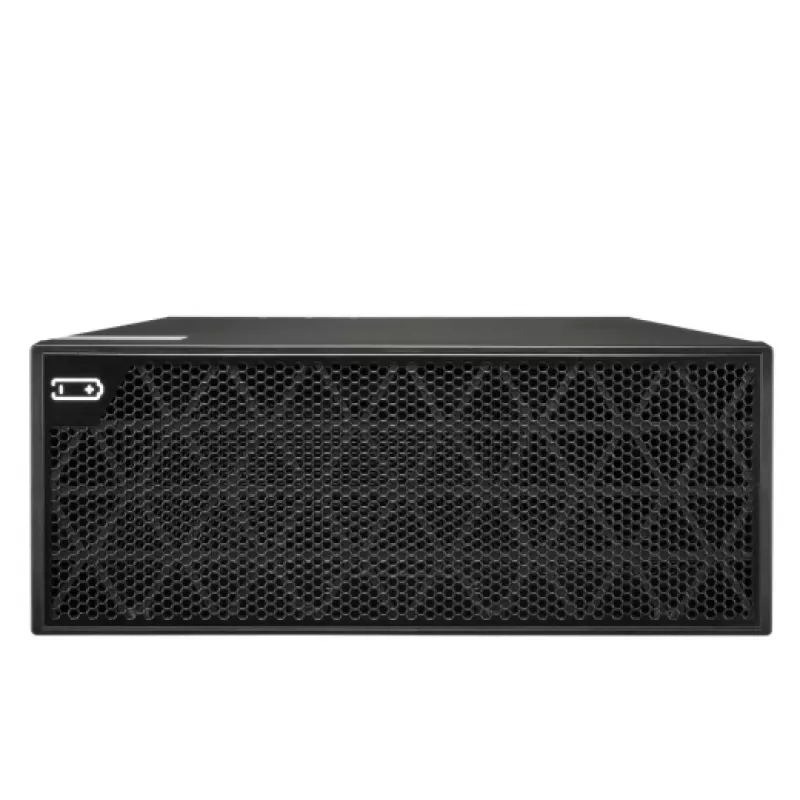

APC SRTG192XLBP2 μπαταρία UPS μολύβδου-οξέος (VRLA) 192 V 160 Ah

The APC SRTG192XLBP2 UPS battery is a sealed lead acid (VRLA) battery pack with a nominal voltage of 192 V and a capacity of 160 Ah. Designed for use with compatible APC SRTG series UPS systems, this battery pack provides a high-capacity backup power source for critical installations. The unit is supplied as a single battery pack weighing 116 kg and finished in black, with dimensions suitable for rack or cabinet integration where space and weight are accommodated.

Advantages

The sealed lead acid construction delivers maintenance-free operation and stable performance over its service life. Embedded battery management monitors cells, modules and cabinet-level status to provide accurate runtime and health reporting. The design supports multiple battery pack configurations, allowing connection of up to 10 battery packs for extended runtime. The 192 V / 160 Ah specification offers a balance between high energy capacity and compatibility with high-voltage UPS architectures.

Suitable for

• Data centers and server rooms requiring extended runtime
• Telecommunications installations and network equipment racks
• Industrial control systems and automation backup power
• Medical and laboratory systems that need uninterrupted power

Key specifications

• Battery technology: Sealed Lead Acid (VRLA)
• Voltage: 192 V nominal
• Capacity: 160 Ah
• Weight: 116 kg
• Colour: Black
• Included units: 1 battery pack
• Scalability: Supports connection of up to 10 battery packs for extended runtime
• Monitoring: Embedded cell, module and cabinet level battery management

How to use

Install the APC SRTG192XLBP2 in accordance with the UPS manufacturer’s installation and safety instructions. Ensure the mounting location can support the pack’s weight and that ventilation and clearances meet equipment specifications. Connect the battery pack to the compatible SRTG UPS system following the provided wiring diagram and polarity markings. When configuring multiple packs, follow APC guidance for serial/parallel connections and system configuration to achieve the desired runtime. Regularly review the embedded monitoring information to confirm battery health and remaining runtime.

Recommendations

Use this battery pack in temperature-controlled environments and follow the UPS vendor’s maintenance schedule. When deploying multiple packs, verify matching age and specifications to ensure uniform performance. Rely on the embedded battery management for predictive maintenance and schedule replacement based on measured capacity and health indicators rather than calendar age alone.
