ACO COMO-PRO-CODE-A1 Ηχητικό Θυροτηλέφωνο με Πληκτρολόγιο, 1 Πλήκτρο Κλήσης, Ασημί, Χωνευτή Τοποθέτηση

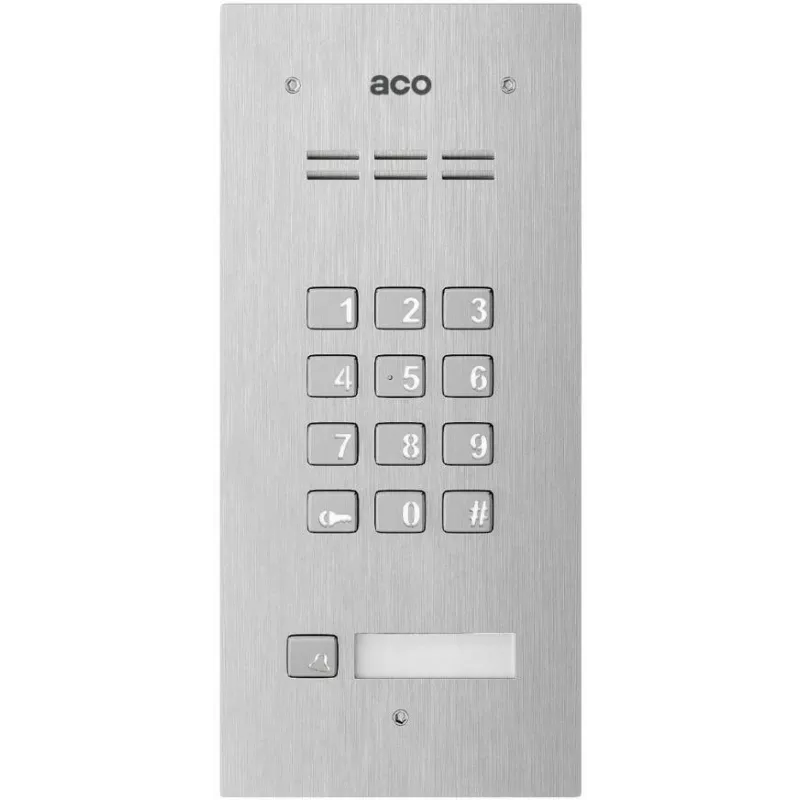

The ACO COMO-PRO-CODE-A1 is a digital audio intercom panel designed for the ACO PRO system. It features a single call button and an integrated numeric keypad for access control, allowing up to 255 user codes. The panel is flush-mounted with an anodized aluminum front panel in silver, providing a sleek and durable solution for residential or commercial entry points.

Advantages

Full-duplex audio communication ensures clear conversations. The keypad and call button are backlit with white LEDs for easy use in low light. With IP54 protection, the panel is resistant to dust and water splashes, making it suitable for outdoor installation.

Suitable for

• Residential buildings
• Small offices
• Secure entry points requiring code-based access

Key specifications

• System Type: Digital Audio Intercom
• Compatibility: ACO PRO System
• Number of Call Buttons: 1
• Access Control: Integrated Numeric Keypad
• Keypad User Capacity: Up to 255 Codes
• Keypad Code Length: 4 Digits
• Keypad Backlight: White LED
• Installation Type: Flush-mounted
• Housing Material: Anodized Aluminum Front Panel
• Color: Silver
• Protection Rating: IP54
• Operating Temperature: -25°C to +55°C
• Power Supply: 15V DC (from ACO PRO bus)
• Relay Outputs: 1 (for electric strike)
• Audio Communication: Full Duplex
• Mounting Box: Included (Flush-mount)
• Call Button Backlight: White LED
• Front Panel Dimensions (W x H): 100 x 200 mm
• Flush Box Dimensions (W x H x D): 85 x 185 x 35 mm

Recommendations

For optimal performance, ensure the panel is connected to an ACO PRO system bus. The included flush-mount box simplifies installation. This panel is ideal for new installations or upgrades where code-based access is desired.
