A-LAN NI056 Επαγγελματικός ελεγκτής καλωδίων δικτύου και ομοαξονικών με TDR, PING, PoE

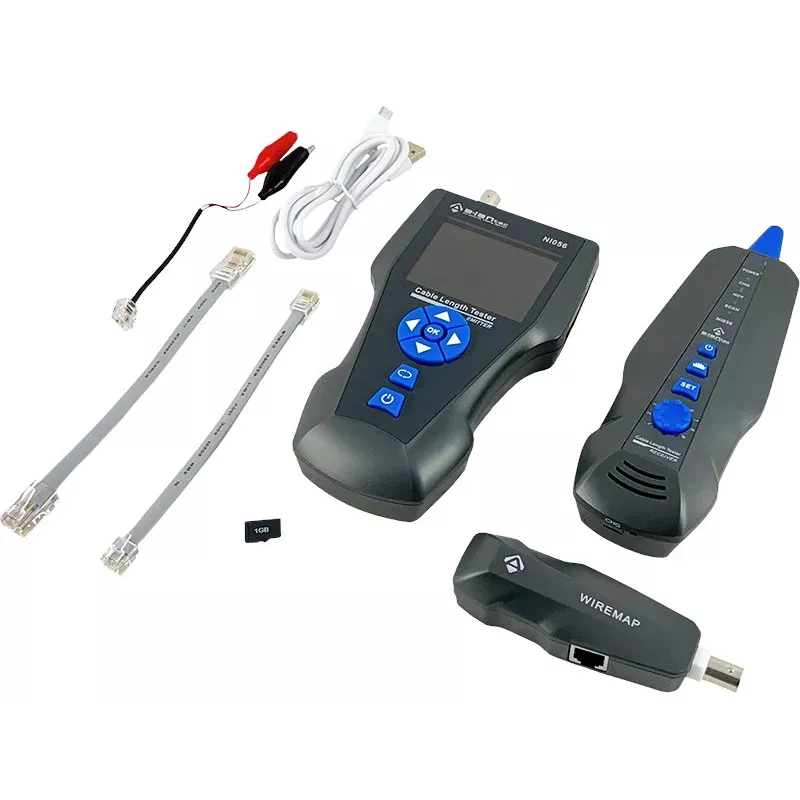

The A-LAN NI056 is a professional network and coaxial cable tester that combines advanced cable fault location, network diagnostics, and PoE verification in one rugged handheld device. Its 3.5-inch colour TFT display provides clear, detailed results for wiremap, length, and network tests, while the built-in tone generator and flashlight make cable tracing easy even in dark or crowded environments.

Advantages

The NI056 offers a comprehensive suite of tests: wiremap with fault identification (short, open, cross, split, reverse, miswire), TDR-based length measurement up to 600 meters with ±2m or 5% accuracy, and PoE testing for voltage, polarity, and IEEE 802.3af/at standards. Network functions include PING, IP scan, port blink, DHCP client, and traceroute, with link speed detection up to 1000 Mbps. The rechargeable 3.7V Li-ion battery ensures long operation, and the USB-C port allows data transfer and charging. Supplied with up to 8 remote ID units, it supports efficient multi-drop testing.

Suitable for

• Network installers and maintenance technicians
• Structured cabling and coaxial cable verifiers
• IT professionals troubleshooting LAN and PoE devices
• Field service engineers needing portable diagnostics

Key specifications

• Display: 3.5-inch TFT LCD colour screen
• Supported cable types: UTP, FTP, STP (Cat 5e, Cat 6, Cat 6a), Coaxial (RG59, RG6, RG11)
• Wiremap: short, open, cross, split, reverse, miswire
• Length measurement: TDR, up to 600 m, accuracy ±2 m or 5%
• PoE test: voltage, polarity, IEEE 802.3af/at
• Network test: PING, IP scan, port blink, DHCP client, traceroute
• Link speed detection: 10/100/1000 Mbps
• Tone generator and flashlight included
• Power: rechargeable 3.7V Li-ion battery, USB-C charging
• Remote ID units: up to 8

Recommendations

For technicians who demand accuracy and efficiency, the NI056 is an indispensable tool that streamlines cable verification and network troubleshooting in one compact device.
