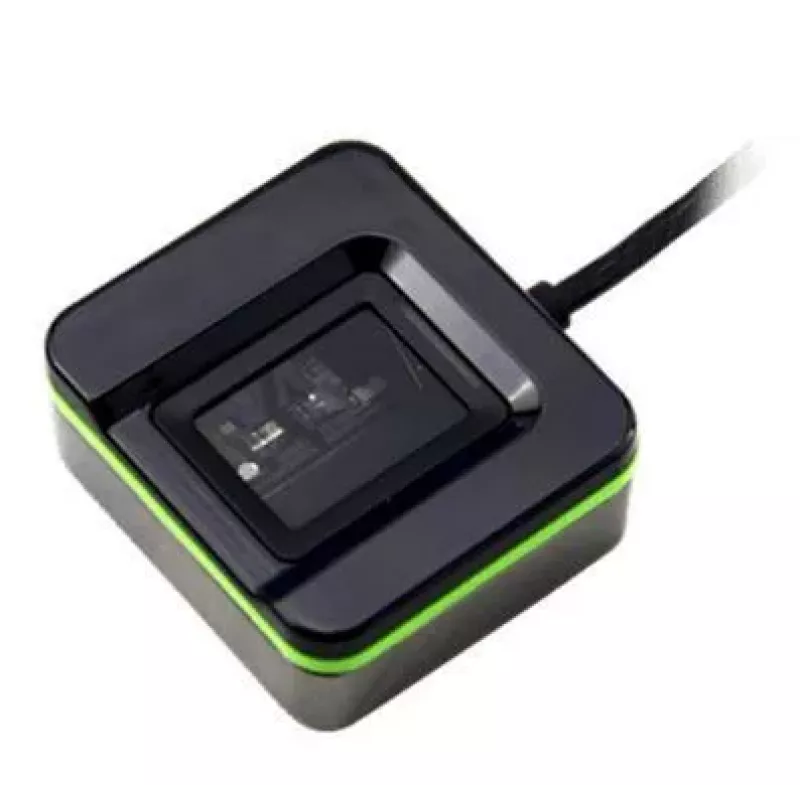

2N Fingerprint Reader Module USB 2.0 μαύρο - πράσινο για Access Unit 2.0

The 2N Fingerprint Reader Module (model 9137423E) is a high-security biometric accessory designed exclusively for the 2N Access Unit 2.0. It integrates seamlessly via an internal USB 2.0 interface, providing fast and reliable fingerprint authentication with a capacity of up to 20,000 templates. The module features an optical sensor with a false acceptance rate of less than 0.001% and a false rejection rate of less than 0.1%, ensuring accurate and secure access control. Its compact design in black with green accents is built for durability, with IP54 and IK07 ratings when installed. Powered directly by the 2N Access Unit 2.0, it requires no external power supply. This module is ideal for upgrading existing 2N Access Unit 2.0 installations to biometric verification, enhancing security in commercial, industrial, and residential environments.

Advantages

High-security fingerprint authentication with encrypted communication; fast recognition in under 1 second; easy integration as an internal module; robust design with IP54 and IK07 protection; supports up to 20,000 fingerprint templates.

Suitable for

• Access control systems using 2N Access Unit 2.0
• Secure entry for offices, data centers, laboratories
• Residential and commercial buildings requiring biometric verification

Key specifications

• Product Type: Fingerprint Reader Module
• Compatibility: 2N Access Unit 2.0
• Sensor Technology: Optical Fingerprint Sensor
• Fingerprint Capacity: Up to 20,000 templates
• False Acceptance Rate (FAR): < 0.001%
• False Rejection Rate (FRR): < 0.1%
• Authentication Speed: < 1 second
• Interface: Internal (to 2N Access Unit 2.0)
• Power Supply: Powered by 2N Access Unit 2.0
• Operating Temperature: -20°C to +55°C (-4°F to 131°F)
• Storage Temperature: -20°C to +70°C (-4°F to 158°F)
• Relative Humidity: 10% to 90% (non-condensing)
• Ingress Protection (IP) Rating: IP54 (when installed)
• Vandal Resistance (IK) Rating: IK07 (when installed)
• Color: Black (front panel)
• Material: Plastic, Metal
• Security Features: Encrypted communication
• Installation Type: Module for 2N Access Unit 2.0

Recommendations

For optimal performance, ensure the 2N Access Unit 2.0 firmware is up to date. The module should be installed by a qualified technician to maintain IP54 and IK07 ratings. Regular cleaning of the sensor surface is recommended for consistent fingerprint recognition.
